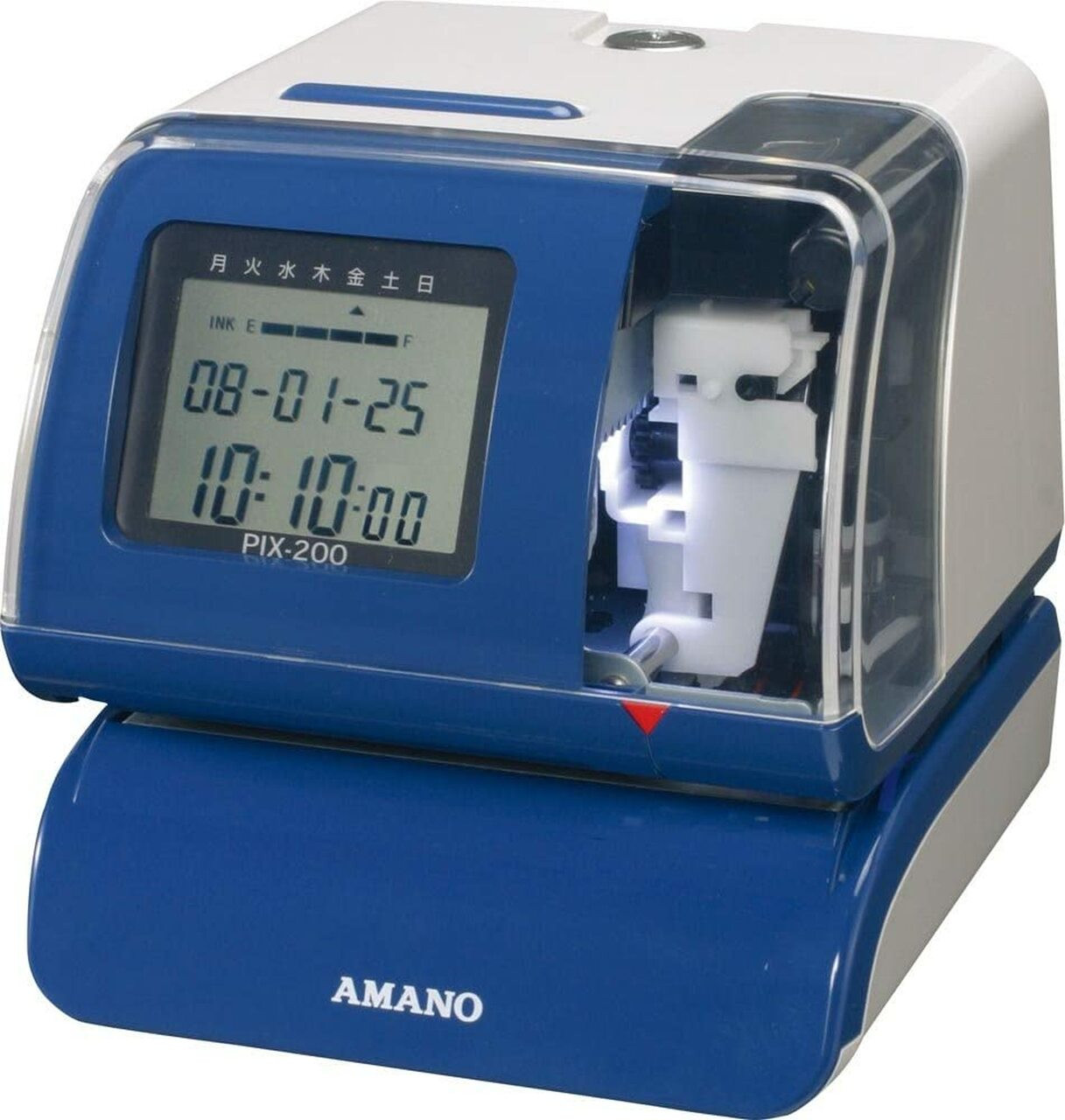

AMANO Electronic Time Stamping Machine
Model : PIX-200

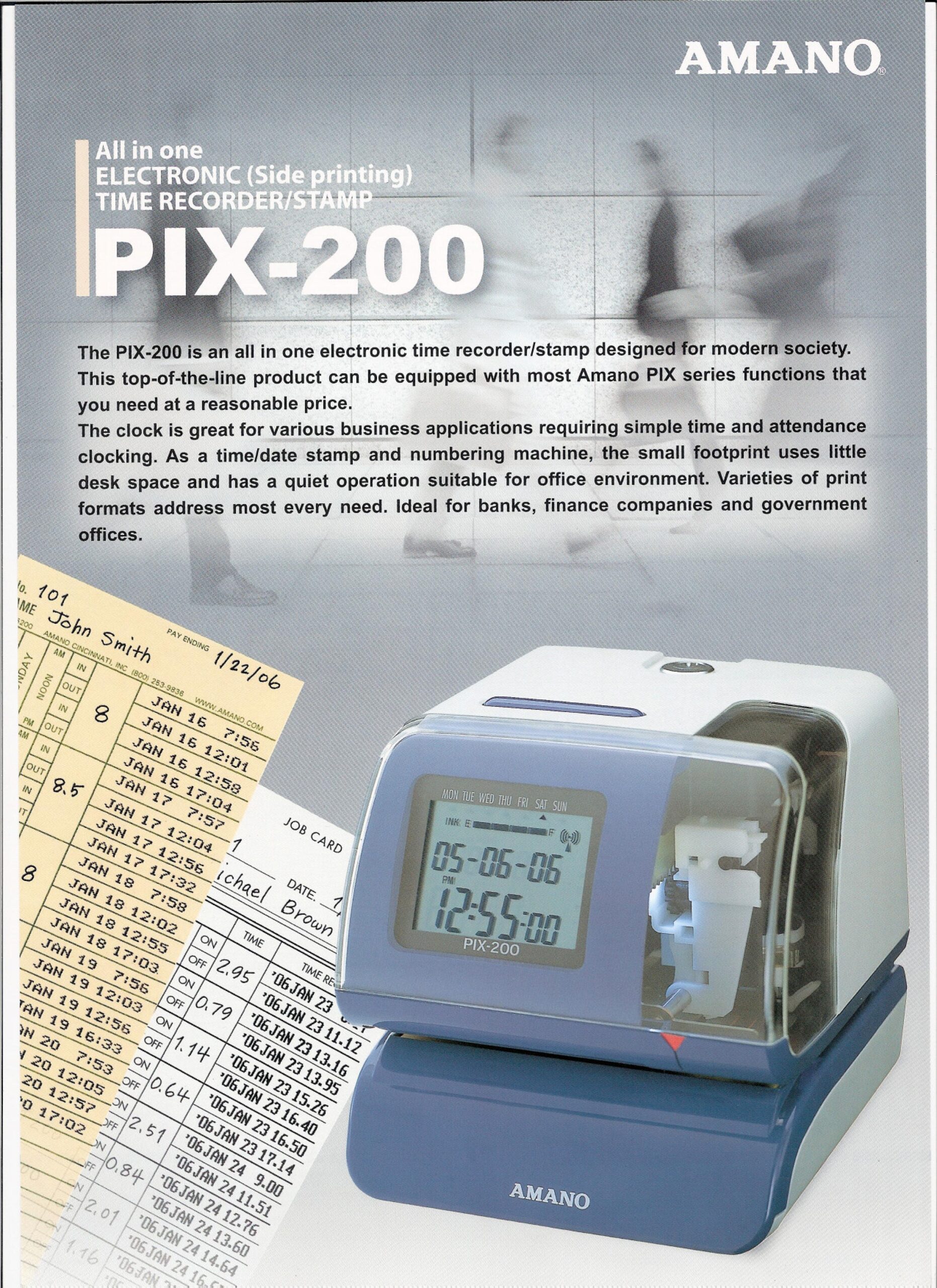

The PIX-200 is an all-in-one electronic time recorder and date stamp designed to meet the typical needs and special requirements of contemporary business. The PIX-200 includes a wide variety of standard features and offers a set of optional accessories with unique functions. The clock is ideal for use in applications from simple time and attendance tracking to more sophisticated computer communication and time synchronization.
FEATURES :
- Multifunctional Operation: Serves as a time recorder, date stamp, and numbering machine for job costing or document tracking.
- Customizable Imprints: Choose from 13 preset comments (RCVD, SENT, PAID, etc.) in 6 languages or program up to 3 lines of custom text.
- Automatic Numbering: Features an 8-digit consecutive numbering system with programmable reset and repeat functions.
- Tamper-Proof Security: 4-digit password protection and a physical key lock prevent unauthorized changes to time and settings.
- High-Speed Dot Matrix Printing: Delivers crisp, clear imprints on various paper thicknesses and time cards.
- Easy Maintenance: Includes a ribbon ink capacity gauge and a simple snap-in cartridge system for quick refills.
SPECIFICATIONS :
- Model : AMANO PIX-200
- Printing Method : Dot Matrix
- Clock Accuracy : Quartz Oscillation (±3 sec/week)
- Automatic Daylight Saving Time Adjustment
- Memory Retention : Clock and settings kept for 3 years without AC power
- Time Formats : 12 or 24-hour; Minutes (1/10, 1/100A, 1/100B, 1/10)
- Numbering : Up to 8 consecutive digits
- 31 Selectable Preset Print Style: Prints Year, Month, Day, Date, Hour (AM/PM or 0-23), Minutes, Seconds, 8-Digit Number and Comments in Various Order.
- 13 Selectable Comments: i.e. RCVD, SENT etc. in 6 Languages (Eng,Spa,Germ,Ita,Fre,Por)
- Prints Up to Eight (8) Consecutive Numbers with Automatic Reset Function at a Specified Programmed Time
- Calendar : Perpetual (Auto-adjust for Date, Month, and Leap Year)
- Power Supply : AC Adapter (100-240VAC, 50/60Hz)
- Power Consumption : Rated at 1.2A (Standby 3W, Max 6W)
- Operating Temp : -10°C to 45°C (14°F to 113°F)

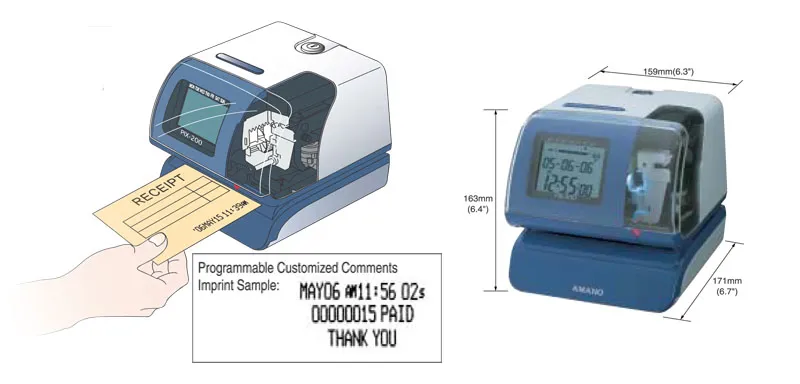

- Dimensions : 159 (W) x 163 (H) x 171 (D) mm
- Net Weight : 2.2 kg (4.85 lbs)
FAQ: Frequently Asked Questions

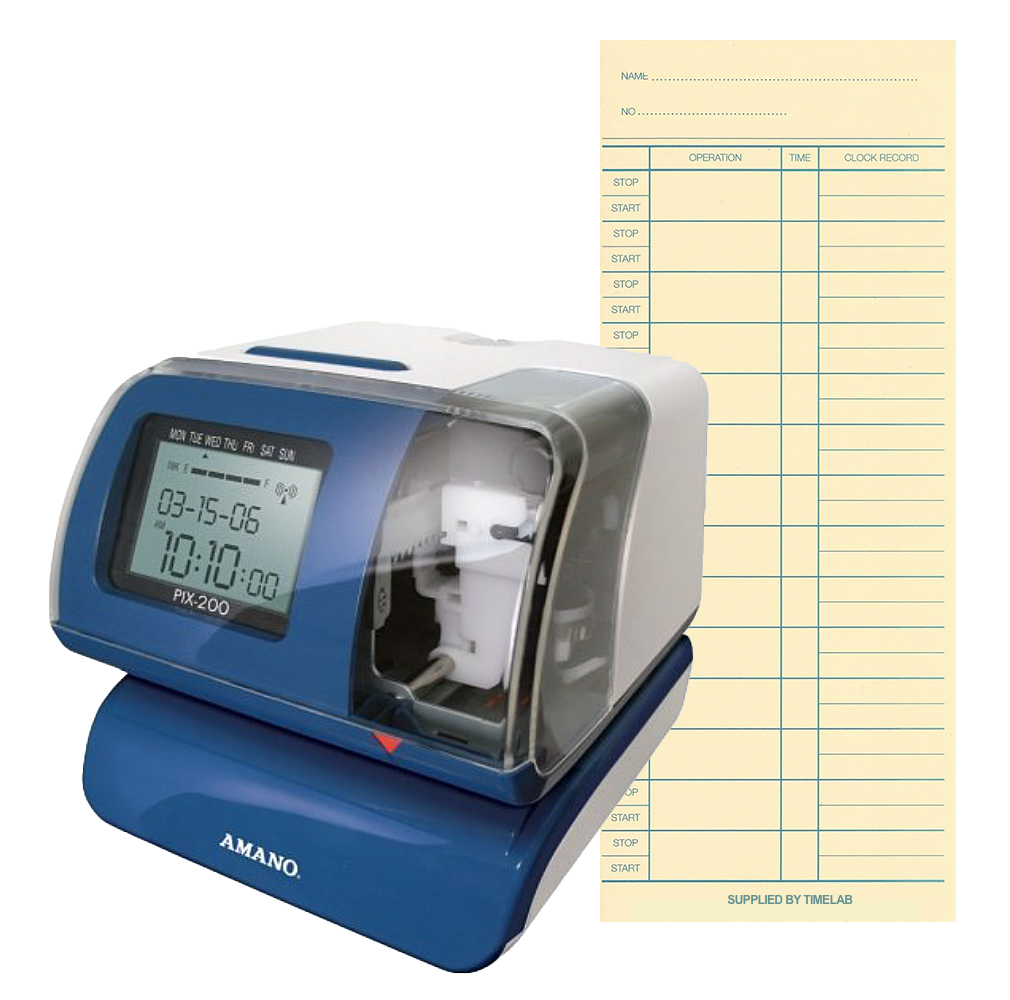

1. Can I use this machine for job costing? – Absolutely. The PIX-200 is widely used in workshops and service centers to stamp “Start” and “End” times on job tickets to calculate labor hours accurately.
2. What happens if the power goes out? – The internal lithium battery ensures your settings and the correct time are saved for up to 3 years. To continue printing during a blackout, an optional full-power battery reserve (72 hours/400 punches) can be installed.
3. Does it support automatic numbering for invoices? – Yes. You can set the machine to print a sequence of numbers that advances after every stamp, or repeats the same number a specific amount of times before moving to the next.
4. How do I change the print position? – There is a slide lever on the side of the machine that allows you to manually adjust the depth of the print on the paper or time card.
5. Can I sync this with my office network? – Yes. With the optional Ethernet LAN or USB communication kits, you can sync the PIX-200 to an NTP server to ensure it matches your computer network’s time exactly.
