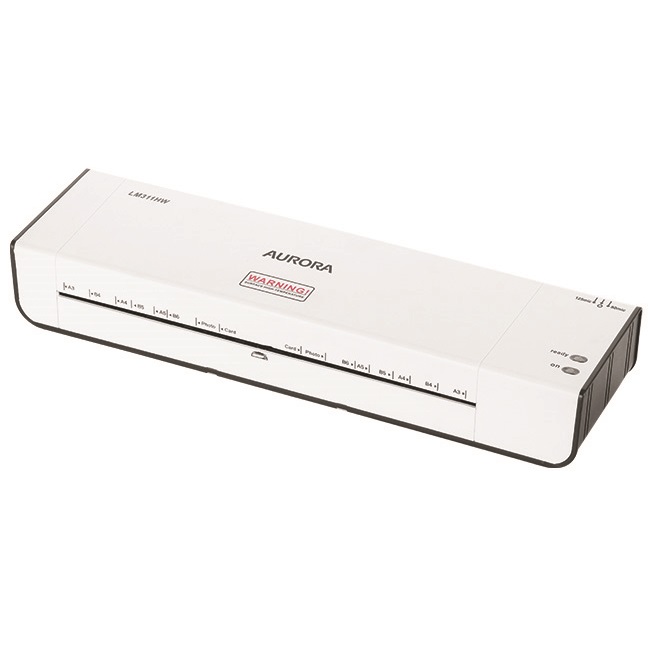

AURORA Laminator Machine
Model : LM311 (LM311HW) (A3)
FEATURES :
- Large A3 Format: Supports laminating documents up to A3 size, including posters, large photos, and charts.
- Rapid Warm-Up: Reaches optimal laminating temperature in just 3 to 5 minutes for fast project starts.
- Quiet Performance: Features a silent motor and roll-fed system to minimize noise in shared environments.
- Jam Release Lever (ABS): Includes a manual lever to quickly release the rollers and remove misaligned or jammed pouches.
- P-4 Grade Security Seal: Creates a permanent, water-resistant, and airtight seal to protect items from damage.
- Intelligent LED Indicators: Dual-light system shows “Power” status and “Ready” status for easy monitoring.
- Overheat Protection: Safety sensors automatically manage the internal temperature to prevent damage to the machine.
- Compact Footprint: Despite its A3 capability, it maintains a slim profile that fits easily on a standard desk or shelf.

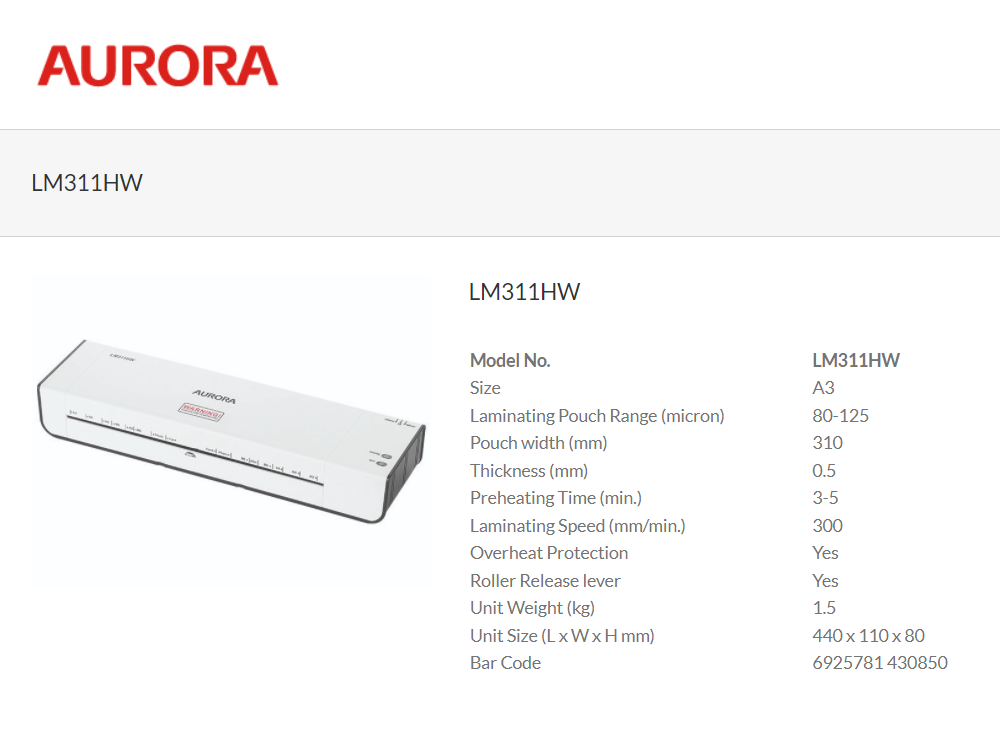

SPECIFICATIONS :
- Model Number : AURORA LM311 / LM311HW
- Maximum Paper Size : A3
- Entry Width : 310 mm
- Number of Rollers : 2 Rollers
- Lamination Type : Hot Lamination
- Warm-Up Time : 3 – 5 Minutes
- Laminating Speed : 300 mm / Minute
- Pouch Thickness Range : 80 – 125 Microns
- Max Document Thickness : 0.5 mm
- Roller Release Lever : Yes (Manual ABS Button)
- Overheat Protection : Yes
- Power Supply : AC 220V – 240V
- Frequency : 50 / 60 Hz
- Current Consumption : 1.6A
- Power Consumption : Max 400W
- Housing Material : High-Impact Plastic
- Ready Indicator : Yes (LED)
- Power Indicator : Yes (LED)

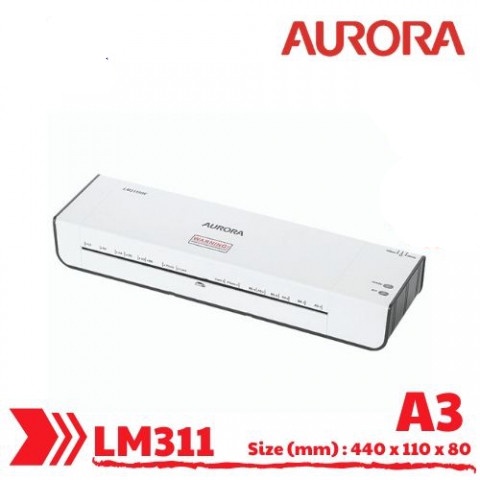

- Unit Dimensions : 440 (L) x 110 (W) x 80 (H) mm
- Unit Weight : 1.5 kg
Â
FAQ: Frequently Asked Questions
1. Can the LM311 laminate A4 and smaller sizes? – Yes. Although it is an A3 machine, it can easily handle A4, A5, and even smaller items like business cards or ID tags.
2. What is the “Roller Release Lever” for? – If you accidentally feed a document crookedly, you can push this lever to disengage the rollers and pull the pouch out safely.
3. Does it support cold lamination? – The LM311 is primarily designed for Hot Lamination. For heat-sensitive items like thermal receipts, a dedicated cold-mode laminator is recommended.
4. How many rollers does this model have? – It features a 2-roller system that provides consistent pressure and heat for a smooth finish.
5. How thick of a document can it handle? – The maximum total thickness (document plus pouch) is 0.5 mm. Avoid laminating very thick cardstock or layered materials.
6. Does it require a carrier sheet? – No, you can feed the laminating pouch directly into the machine. Just ensure the sealed edge is fed in first.
7. How long should I wait between laminating sheets? – It is recommended to wait at least 15 seconds between items to allow the rollers to maintain a stable temperature.
8. Can I leave the machine on for long periods? – To extend the machine’s life, it should not be operated for more than 2 hours continuously. Allow it to cool for 30 minutes after heavy use.
9. Is the finish waterproof? – Yes. Once laminated, the pouch creates an airtight and water-resistant seal around your document.
10. Why buy the Aurora LM311 from your Puchong store? – We have over 18 years of experience in office automation since 2008. We provide local warranty support and expert advice right here in Puchong, Selangor, Malaysia
