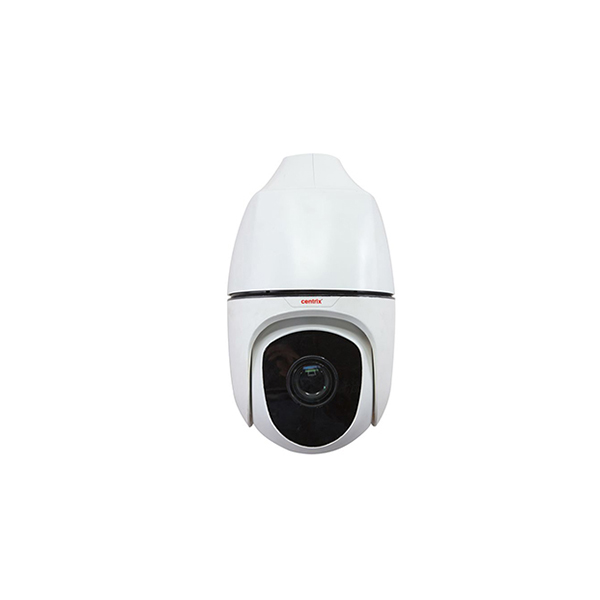

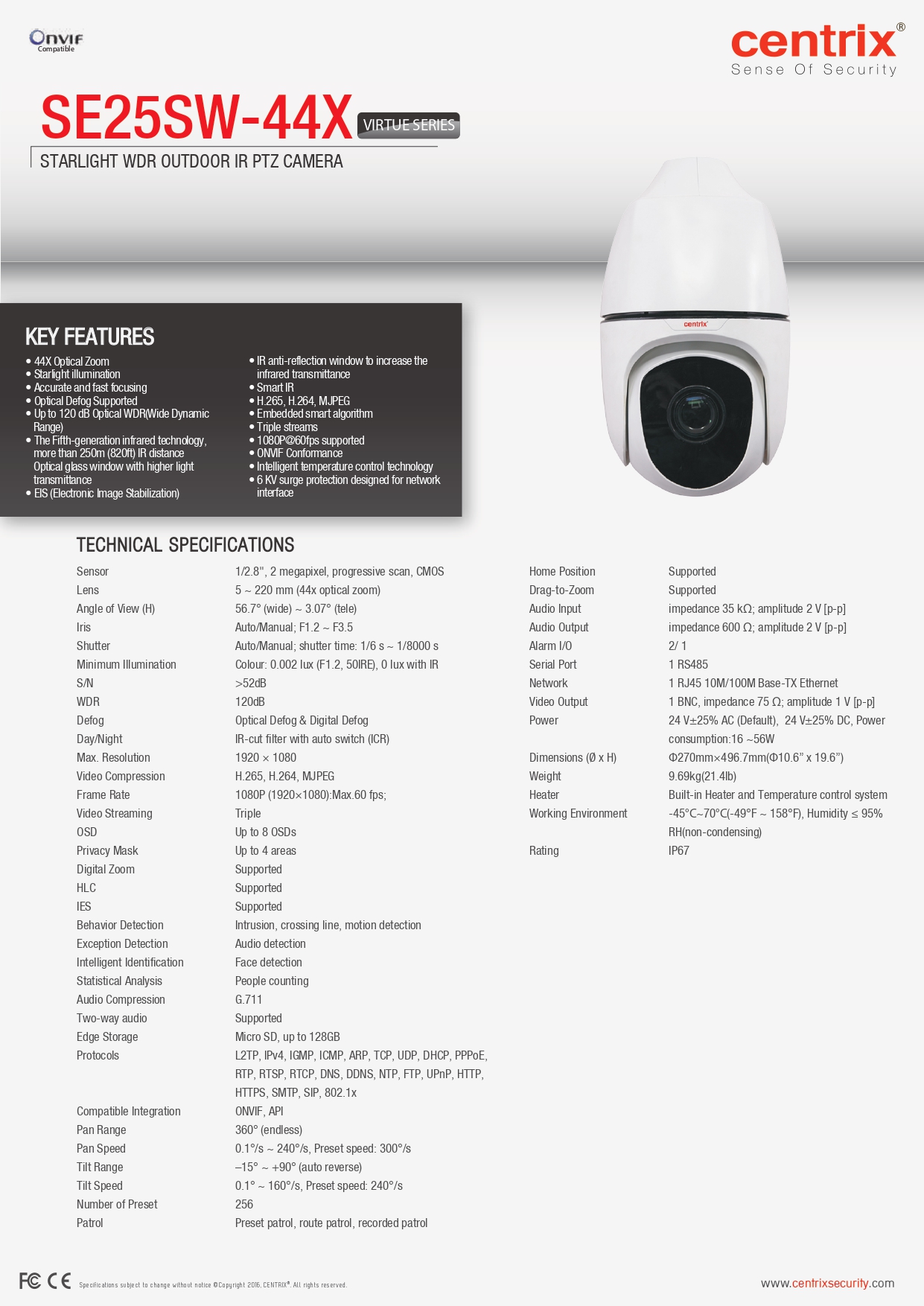

CENTRIX High Speed Dome Camera
Model: SE25SW-44X
KEY FEATURES
- Starlight illumination
- 44X Optical Zoom
- Accurate and fast focusing
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- The Fifth-generation infrared technology, more than 250m (820ft) IR distance
- Optical glass window with higher light transmittance
- EIS (Electronic Image Stabilization)
- IR anti-reflection window to increase the infrared transmittance
- Smart IR
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 1080P@60fps supported
- ONVIF Conformance
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
TECHNICAL SPECIFICATIONS
- SENSOR : 1/2.8″, 2 megapixel, progressive scan, CMOS
- LENS : 6.5 ~ 143 mm (22x optical zoom)
- ANGLE OF VIEW(H) : 70° (wide) ~ 3.76° (tele)
- IRIS : Auto/Manual; F1.5 ~ F3.4
- SHUTTER : Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
- MINIMUM ILLUMINATION : Colour: 0.001 lux (F1.5, AGC ON), 0 Lux with IR on
- S/N RATIO : >52dB
- WDR : 120 dB
- DEFOG : Optical Defog & Digital Defog
- DAY/NIGHT : IR-cut filter with auto switch (ICR)
- MAX RESOLUTION : 1920 × 1080
- VIDEO COMPRESSION : H.265, H.264, MJPEG
- FRAME RATE : 1080P (1920×1080):Max.60 fps
- VIDEO STREAMING : Triple
- OSD : Up to 8 OSDs
- PRIVACY MASK : Up to 4 areas
- DIGITAL ZOOM : Supported
- HLC : Supported
- IES : Supported
- BEHAVIOR DETECTION : Intrusion, crossing line, motion detection
- EXCEPTION DETECTION : Audio detection
- INTELLIGENT IDENTIFICATION : Face detection
- STATISTICAL ANALYSIS : People counting
- AUDIO COMPRESSION : G.711
- TWO-WAY AUDIO : Supported
- EDGE STORAGE : Micro SD, up to 128 GB
- PROTOCOLS : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
- COMPATIBLE INTEGRATION : ONVIF, API
- PAN RANGE : 360° (endless)
- PAN SPEED : 0.1°/s ~ 240°/s, Preset speed: 300°/s
- TILT RANGE : –15° ~ +90° (auto reverse)
- TILT SPEED : 0.1° ~ 160°/s, Preset speed: 240°/s
- NUMBER OF PRESET : 256
- PATROL : Up to 16 patrols, up to 32 presets per patrol, Note: Thetotal number of patrols and patterns is 16.
- HOME POSITION : Supported
- DRAG-TO-ZOOM : Supported
- AUDIO INPUT : impedance 35 k ; amplitude 2 V [p-p]
- AUDIO OUTPUT : impedance 600 ; amplitude 2 V [p-p]
- ALARM I/O : 2/ 1
- SERIAL PORT : 1 RS485
- NETWORK : 1 RJ45 10M/100M Base-TX Ethernet
- VIDEO OUTPUT : 1 BNC, impedance 75 ; amplitude 1 V [p-p]
- POWER ; 24 V±25% AC (Default), 24 V±25% DC, Power consumption:16 ~56W
- DIMENSION : 270mm×496.7mm( 10.6” x 19.6”)
- WEIGHT : 9.69kg(21.4lb)
- HEATER : Built-in Heater and Temperature control system
- WORKING ENVIRONMENT : –40°C ~ +65°C (-40°F ~ 149°F), Humidity 95% RH(non-condensing)
- RATING : IP67
