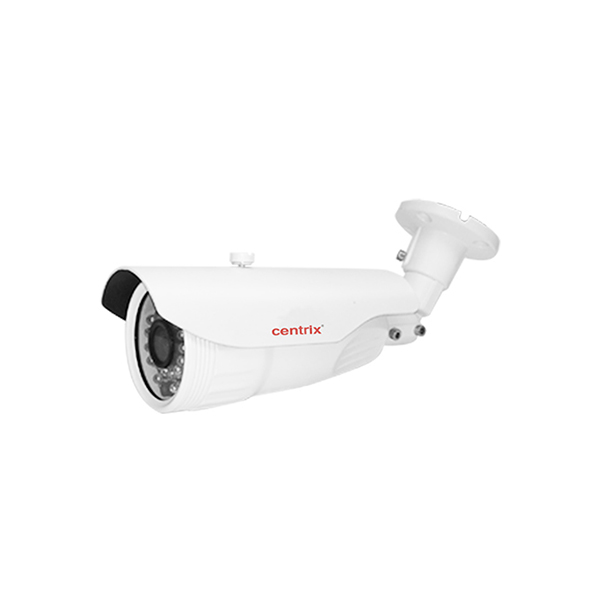

CENTRIX Infra Red AHD Weatherproof Camera IHW100

CENTRIX Infra Red AHD Weatherproof Camera

Model: IHW100



KEY FEATURES

  • 1/3" 4.0 Megapixels CMOS OV4689
  • Outdoor application
  • High Definition resolution 2560 ×1440
  • High Definition resolution 2560 ×1440
  • 3.6mm fixed lens
  • Max. transmission distance up to 500 meters
  • 30 IR LEDs
  • 30m IR range
  • Smart IR
  • 0.01Lux (F1.2), 0 Lux with IR
  • 2DNR/3DNR
  • IR-CUT optical filter technology
  • IP67 Rating

TECHNICAL SPECIFICATIONS

  • Image Sensor  : 1/3" 4.0 Megapixels CMOS OV4689
  • Processor  : NVP2475
  • Scanning System  : Progressive scan method
  • Resolution  :  4.0MP
  • Effective Pixels  :  2560*1440
  • Image System  :  PAL/ NTSC
  • Electronic Shutter  :  1/25s~1/100000s(PAL),1/30s~1/100000s(NTSC)
  • Min. Illumination  :  0.01Lux (F1.2), 0 Lux with IR
  • Video Output  :  1CH CVBS or 1CH AHD output
  • S/N Ratio  :  More than 48dB (AGC off)
  • Gamma Correction  :  0.45
  • Lens  :  3.6mm fixed varifocal
  • IR LED  :  30 nos
  • IR Distance  :  30M
  • Working Temperature  : -20°C~50°C
  • Storage Temperature  :  -30°C~60°C
  • Humidity  :  20%~90%
  • Power Consumption  :  12VDC±10%
  • Rating  :  IP67
