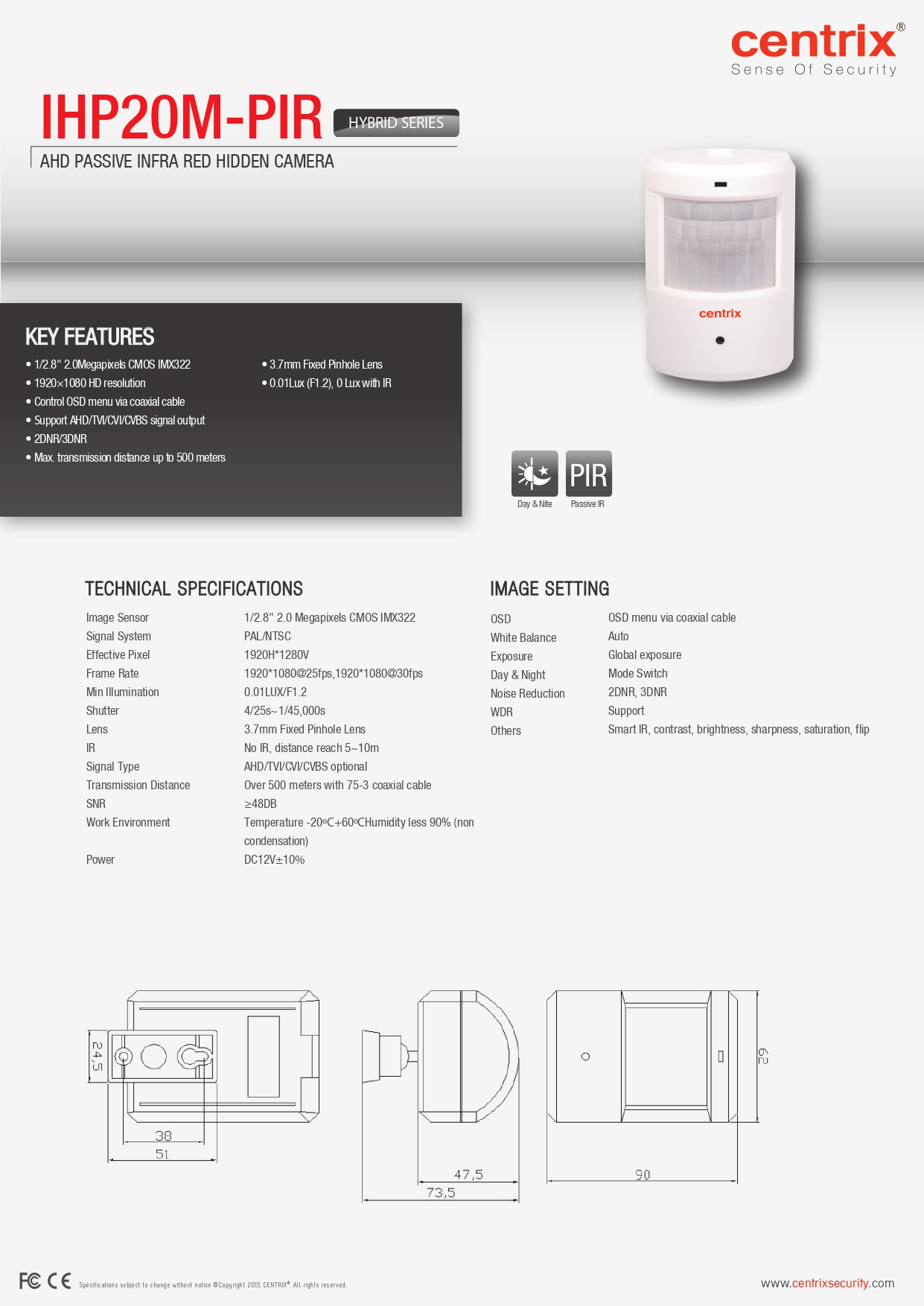

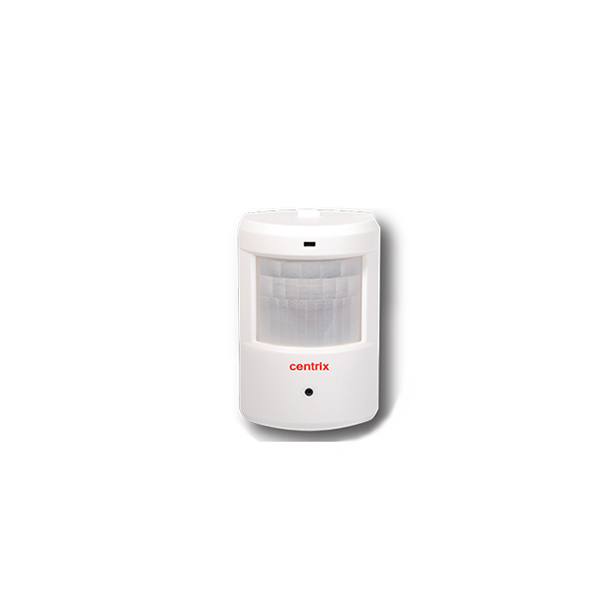

CENTRIX Passive Infra Red Hidden Camera
Model: IHP20M-PIR
Â
KEY FEATURES
Â
- 1/2.8″ 2.0Megapixels CMOS IMX322
- 1920×1080 HD resolution
- Control OSD menu via coaxial cable
- Support AHD/TVI/CVI/CVBS signal output
- 2DNR/3DNR
- Max. transmission distance up to 500 meters
- 3.7mm Fixed Pinhole Lens
- 0.01Lux (F1.2), 0 Lux with IR
Â
TECHNICAL SPECIFICATIONS
Â
- Image Sensor  : 1/2.8″ 2.0 Megapixels CMOS IMX322
- Signal System  :  PAL/NTSC
- Effective Pixels  :  1920H*1280V
- Image System  :  PAL/ NTSC
- Frame Rate  :  1920*1080@25fps,1920*1080@30fps
- Min. Illumination  :  0.01LUX/F1.2
- Shutter  :  4/25s~1/45,000s
- Lens  :  3.7mm Fixed Pinhole Lens
- IR Â : Â No IR, distance reach 5~10m
- Signal Type  :  AHD/TVI/CVI/CVBS optional
- Transmission Distance  :  Over 500 meters with 75-3 coaxial cable
- SNR Â : Â 48DB
- Worki Environment  : Temperature -20ºC+60ºCHumidity less 90% (noncondensation)
- Power Consumption  :  DC12V±10%
