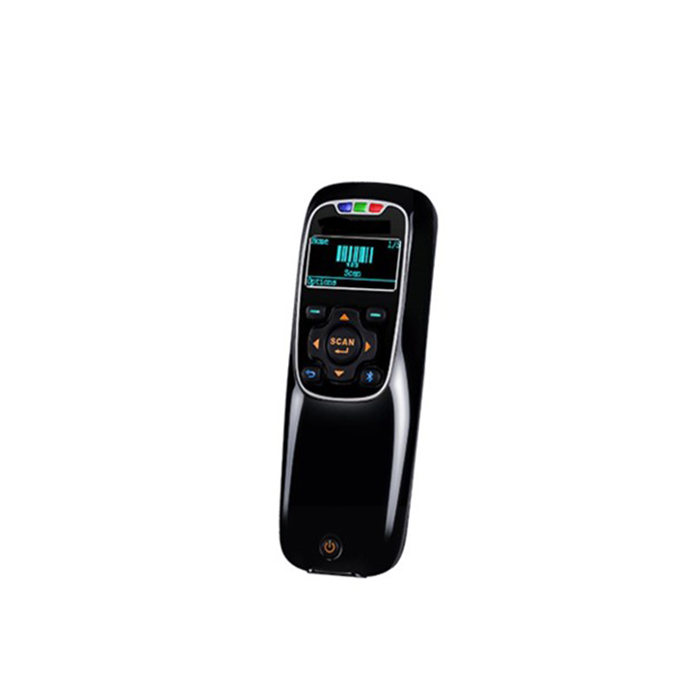

CODESOFT Barcode Scanner
Model: CS-3690 1D
SPECIFICATIONS
- Scan Engine : uE966
- Scanning Angle : ±50º, ±65º, ±35º (skew, pitch, roll)
- Decode Capability : UPC-A, UPC-E, EAN-13, EAN-8, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Display OLED display (128 x 64) with LED backlight Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 and more. Please refer to brochure for details.
- Input Voltage : 5±5%V
- Standby Current : 18 days
- Operating Time : Bluetooth: 22 hours, Wifi: 13 hours, based on 1 scan/5 seconds
- Indicator : Beeper, LED, Vibrator
- Dimensions : L x W x D: 125.0 × 46.0 × 31.0 mm
- Weight : 115g
- Case Material : ABS, Grey/Black/White/Customisation
- Humidity : 5% to 95% (non-condensing)
- Safety EMC : EN55022, EN55024 ? Electrical Safety: EN60950-1 Laser safety: EN60825-1, Class 1 ? Illumination: 0~100,000LUX Sealing – IP65 ? Drop Resistance – Multiple 1.2 m (4.9 ft.) drops to concrete
- Interface : Bluetooth: HID keyboard, SPP, BLE; Wi-Fi: Station mode(STA), Access Point mode(AP); USB: USB HID keyboard, USB virtual COM, U Disk
- Data Storage : 4MB for out of range batch: 250,000 barcodes (each barcode is of 15 bytes); 8MB for data batch mode: 500,000 barcodes (each barcode is of 15 bytes); 76MB for U Disk mode: 5,000,000 barcodes (each barcode is of 15 bytes);
- Operating System : Bluetooth: 4 mA(sleeping), 75 mA(working), 135 mA(scanning); Wi-Fi: 4 mA(sleeping),127 mA(working),187 mA(scanning)
- Display : OLED display (128 x 64) with LED backlight
- Battery : 1900 mAh Lithium-ion battery; Charge time: Fully charged in 4 hours
- Operating Temperature : -20ºC to 55ºC / -4ºF to 131ºF (operating); -40ºC to 70ºC / -40ºF to 158ºF (storage)
- Light Source : 650nm visible laser diode
