FingerTec Access Control i-Kadex

The FingerTec RFID Card Access Control Slave Reader i-Kadex is part of the Kadex series, serving as a slave reader that complements the master terminal (K-Kadex) to establish a complete IN-OUT time attendance & access system with card or password functionality.

It seamlessly integrates with the Kadex Time Attendance & Door Access System series, providing a cost-effective solution for an exit terminal when combined with a master terminal. Stylish and easy to install, the FingerTec RFID Card Access Control Slave Reader i-Kadex ensures simple yet advanced access control for your premises.

Mix and match with master terminals in the Kadex Time Attendance & Door Access System series to create a tailored and efficient security system. Enhance your access control with the i-Kadex and enjoy straightforward management of your security measures.

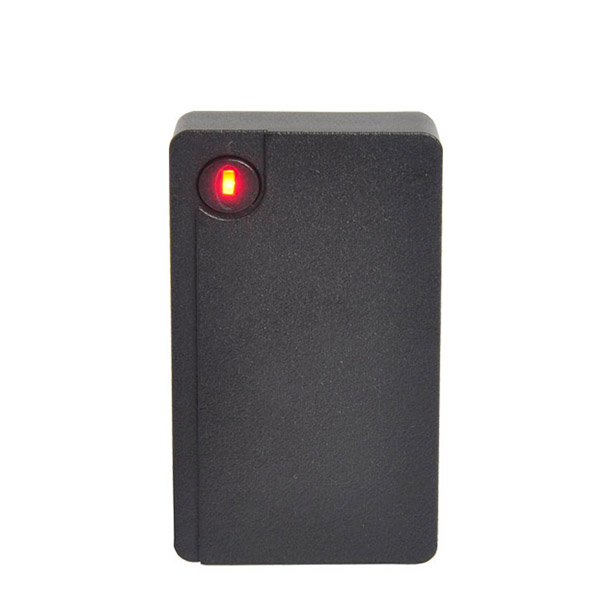

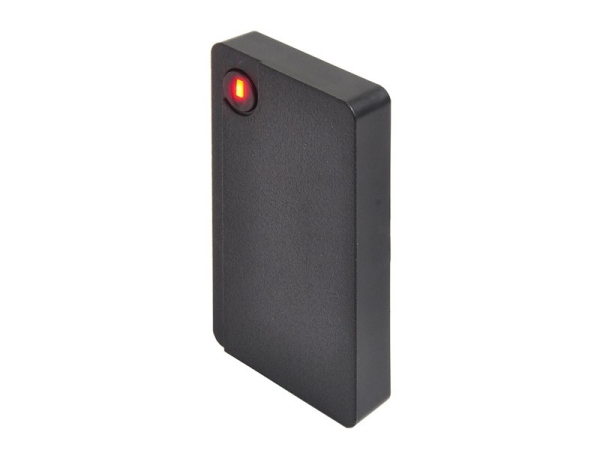

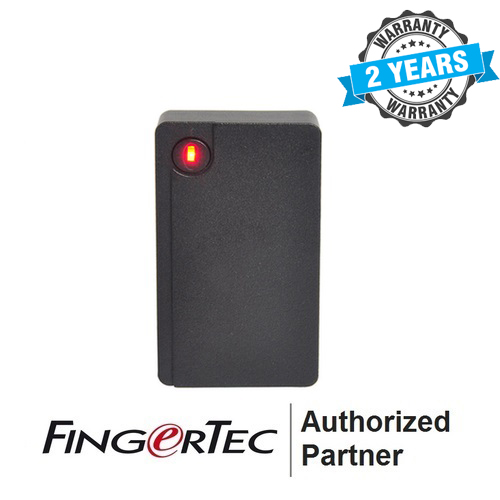

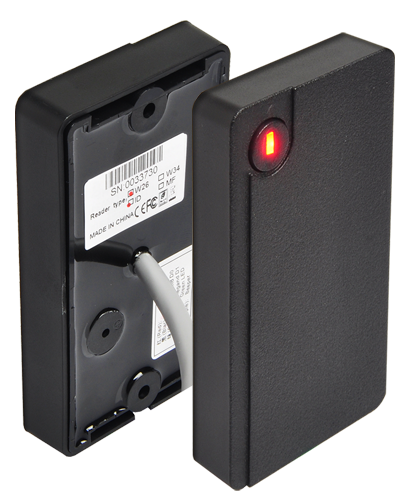

FingerTec RFID Card Access Control Slave Reader

Model: i-Kadex



SPECIFICATIONS
  • Model  :  i-Kadex
  • Surface Finishing  :  Polycarbonate
  • Type Of Antenna  :   RFID
  • Microprocessor : Managed by master
  • Memory  :   Managed by master
  • Algorithm  :   Managed by master
  • Product Dimension (L X W X H) mm  :  55 x 15 x 100
  • Cards  :  Storage in master
  • Transaction  : Storage in master
ENROLLMENT & VERIFICATION
  • Methods  :   Card
  • Card per user ID  :  Managed by master
  • Reading distance, mm  :  40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare)
  • Verification time (sec) : < Managed by master
CARD TECHNOLOGY
  • RFID: 64-bit, 125kHz
  • MIFARE: MFIS50/S70, 13.56MHz
COMMUNICATIONS
  • Method  :  Wiegand
  • Wiegand  :  26-bit input / output
OPERATING ENVIRONMENT
  • Temperature (°C) : -10 ~ 70
  • Humidity (%)   : 20 ~ 80
  • Power input : DC12V 1A

ACCESS CONTROL

  • EM lock driving output  :  Managed by master
  • Alarm output  :  Managed by master
  • Anti passback  :  Managed by master
