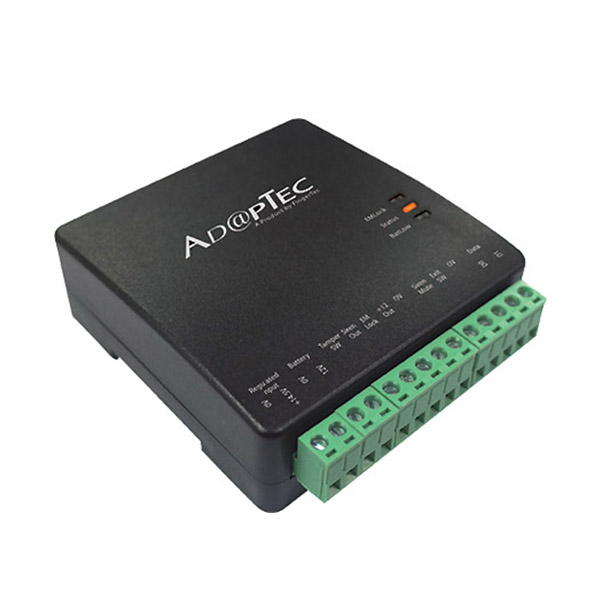

FingerTec AdapTec-X
AdapTec-X is a basic accessory suggested for FingerTec access control systems. It enhances access control functionalities as well as eases the installation process with its encrypted communication and secure I/O expansion features and all theses features are compressed into a sleek casing to deliver a cost effective solution.
SPECIFICATIONS
- Surface finishing : Acrylonitrile Butadiene Styrene (ABS)
- Dimension, mm : 85 x 96 x 33
- Weight, k : 0.1
- CPU : High Performance RISC CPU
POWER SUPPLY
- Power input : 12VDC 3A
- Power output : 12 VDC 3A
- Backup Power system : UPS or 12 VDC Rechargeable battery
INPUT – OUTPUT SIGNAL
- Input signal : 26-bit FingerTec encrypted Weigand signal
- Output signal : 12 VDC 0.5A Siren, 12 VDC 3A EM output (NO/NC Type door locks)
ALERTS & NOTIFICATIONS
- Over input voltage : Yes, 3 long beeps
- Door release : Yes, 2 short beeps
- Door force open : Yes, continuous beeps (May opt to output external siren system)
- Illegal dismantle FingerTec terminals : Yes, continuous beeps (May opt to output external siren system)
- Door unlock timer : VR type, LED blinks to indicate unlock time in Seconds.
- On Board LED indicators : EM LED lit up – door lock output is working, Status LED lit up – CPU is working, Battery low LED lit up – Battery is low and cut-off
ON BOARD PROTECTION
- Over voltage alarm : > 15 VDC
- Fuses : PTC type
- Battery cut-off : 8.5 ~ 9.5 VDC
