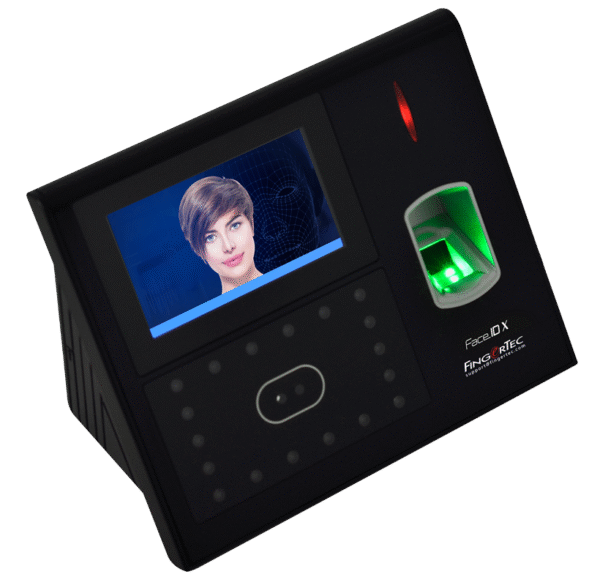

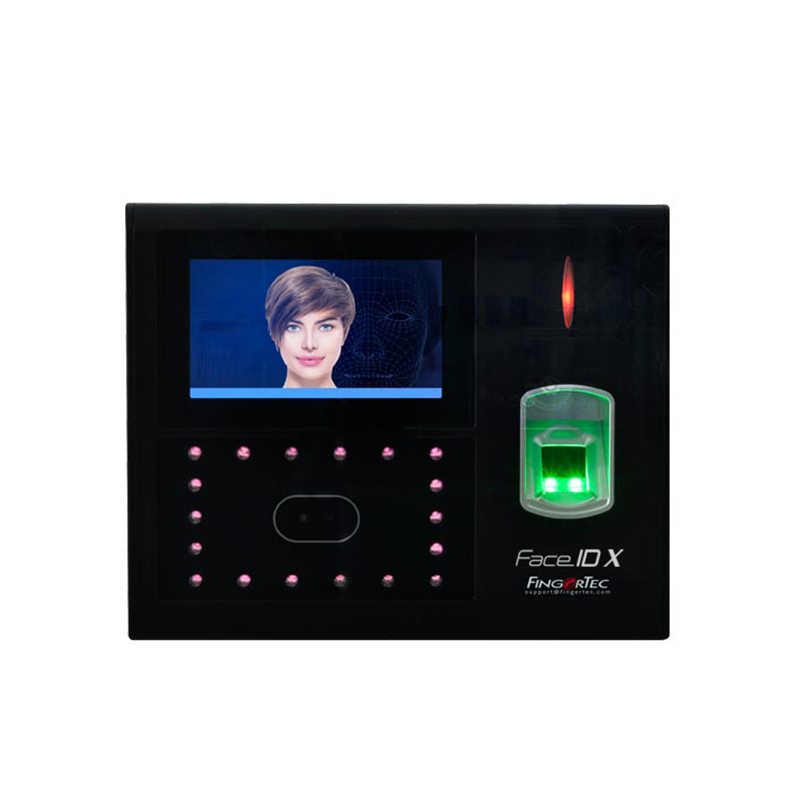

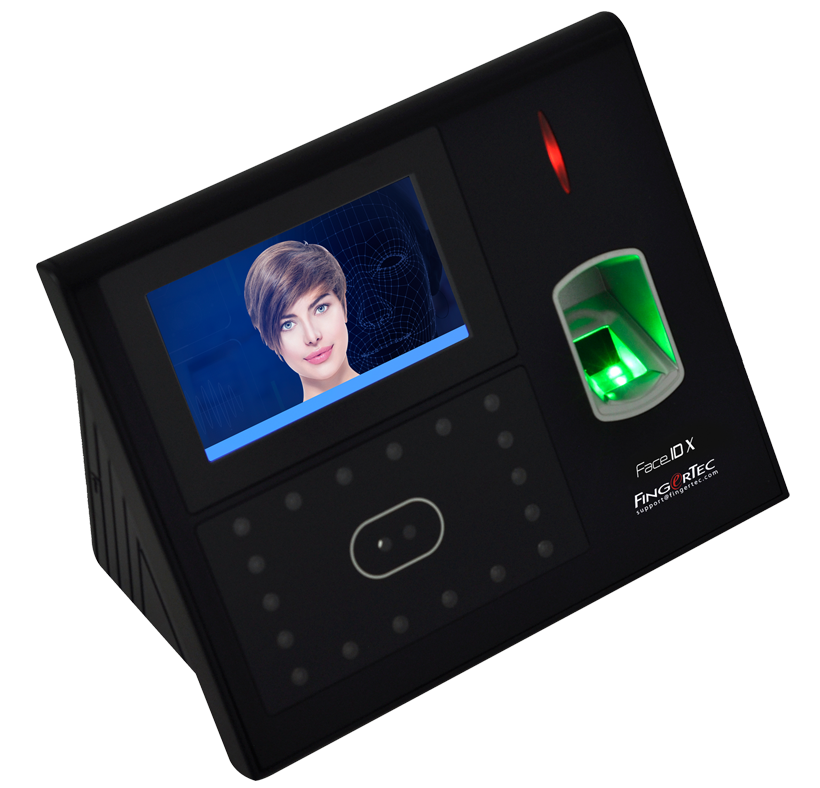

FingerTec Face Recognition & Fingerprint Time Attendance System
Model: Face ID X
SPECIFICATIONS
- MODEL : Face ID X
- SURFACE FINISHING : Acrylonitrile butadiene styrene (ABS) & acrylic
- TYPE OF SCANNER : Hi-res infrared camera & fingerprint scanner
- MICROPROCESSOR : 1.2GHz
- MEMORY : 128MB Nand flash & 64MB Nand flash
- ALGORITHM : Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0
- PUSH TECHNOLOGY : Yes
- PRODUCT DIMENSION (L X W X H), mm : 194 x 110 x 145
STORAGE
- Fingerprint templates : 10,000
- Face templates : 3,000 (1:N), 30,000(1:1)
- Cards : 10,000
- Transactions : 1,000,000
ENROLLMENT & VERIFICATION
- Methods : Face (1:1, 1:N), fingerprint (1:1, 1:N), card & password
- Recommended fingerprint per user ID : 2
- Fingerprint placement : Any angle
- Verification time (sec) : Face < 2, Fingerprint < 1
- Fingerprint : FAR < 0.0001%, FRR < 0.1%
- Face : FAR < 0.01%, FRR < 0.1%
CARD TECHNOLOGY
- RFID: 64-bit, 125kHz, RF output power (EN300-330) : Yes
- MIFARE: MFIS50/S70, 13.56MHz : Make to order
- HID: HID 1325, 26-bit, 125kHz : Make to order
COMMUNICATIONS
- Method : TCP/IP, RS232, RS485, USB disk (Optional WiFi & 3G)
- Baud rates : 9600, 19200, 38400, 57600, 115200
- Wiegand : 26-bit output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC 12V 3A
TIME ATTENDANCE
- Siren : Internal and external
- Work codes : Yes
- Fast transaction checking : Yes
MULTIMEDIA
- Display : 4.3” 65K color TFT touch screen panel
- Photo-ID : Yes
- Short messaging : Yes
- Day light saving timer : Yes
- Internal backup battery : Yes (DC 12V, 2000mAh)
ACCESS CONTROL
- EM lock driving output : DC 12V / relay output
- Alarm output : NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)
- English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
- Other languages are available upon request.
