FingerTec Fingerprint R2c (DISCONTINUED)

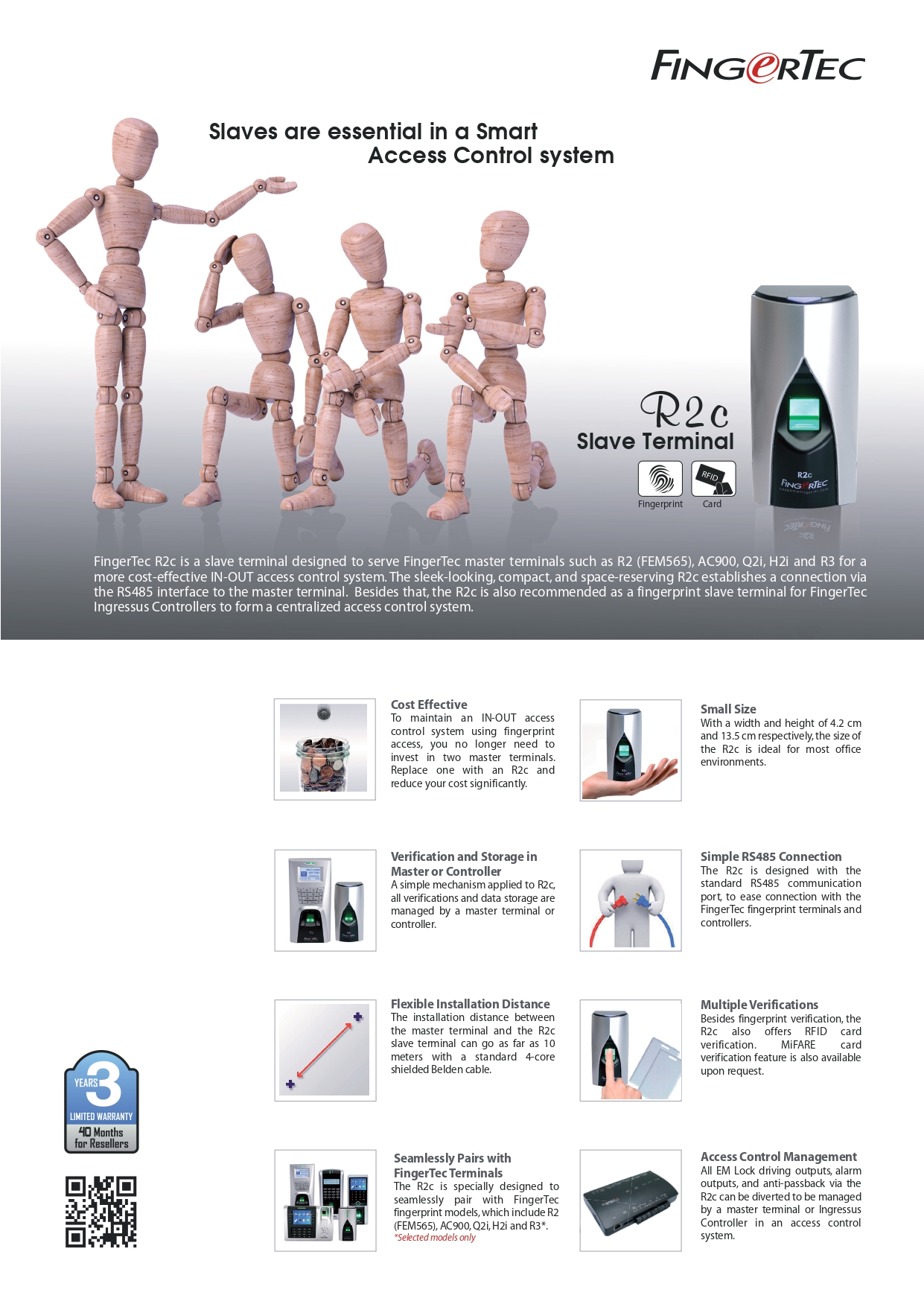

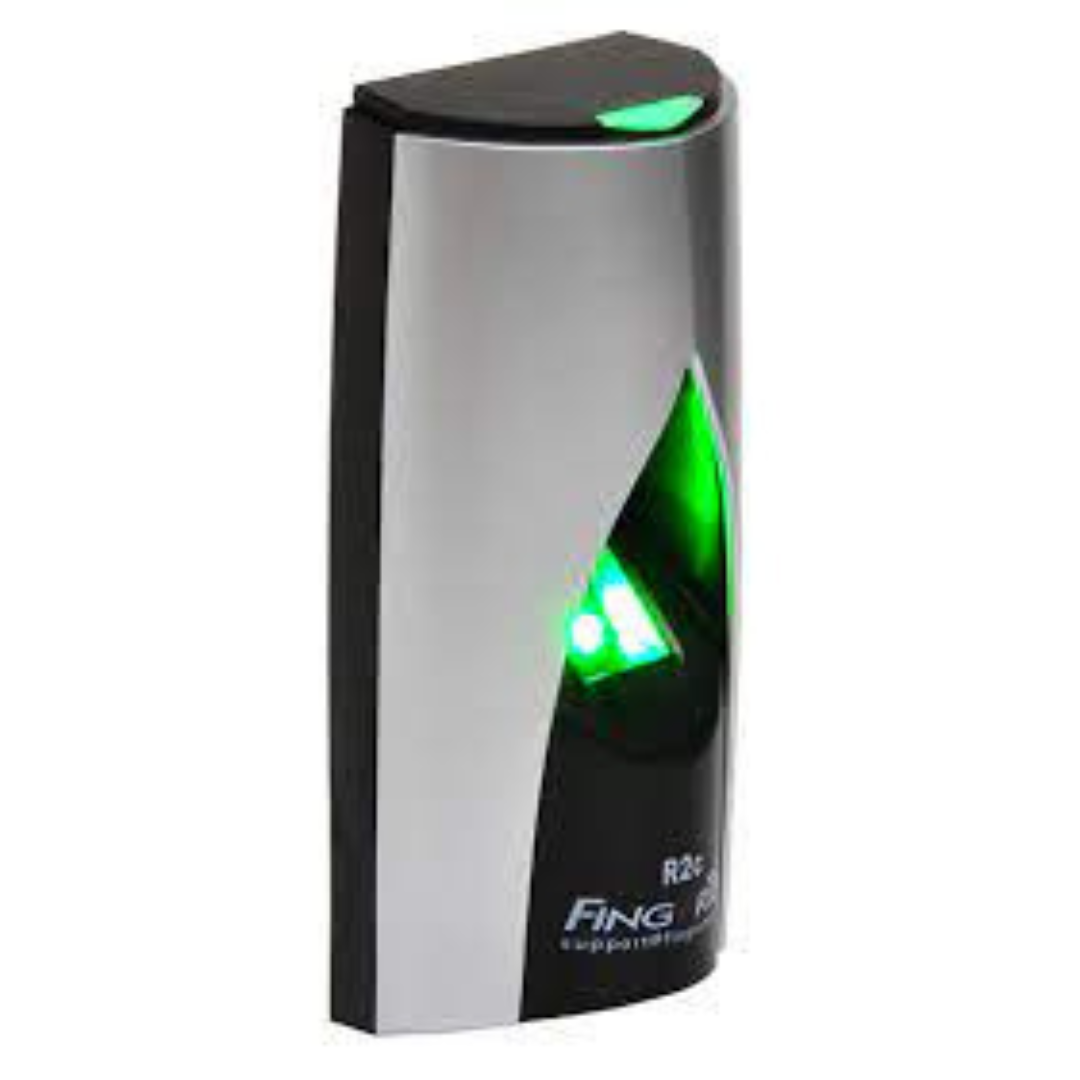

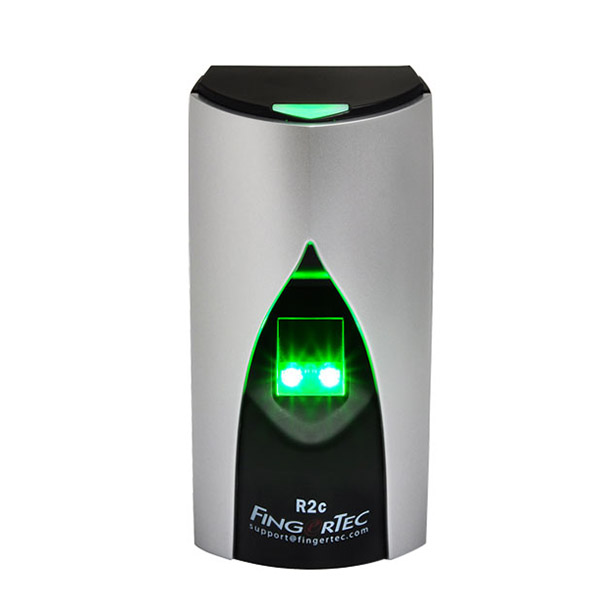

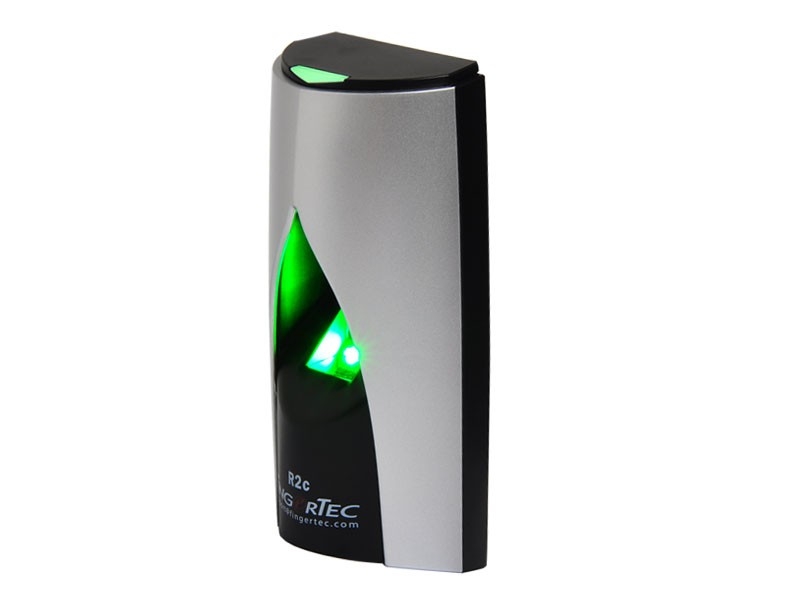

The FingerTec Fingerprint Time Attendance & Door Access Slave Reader R2c is a compact and cost-effective fingerprint slave terminal designed to complement FingerTec master time attendance & door access terminals like R2, AC900, Q2i, H2i, and R3, creating an economical IN-OUT access control system.

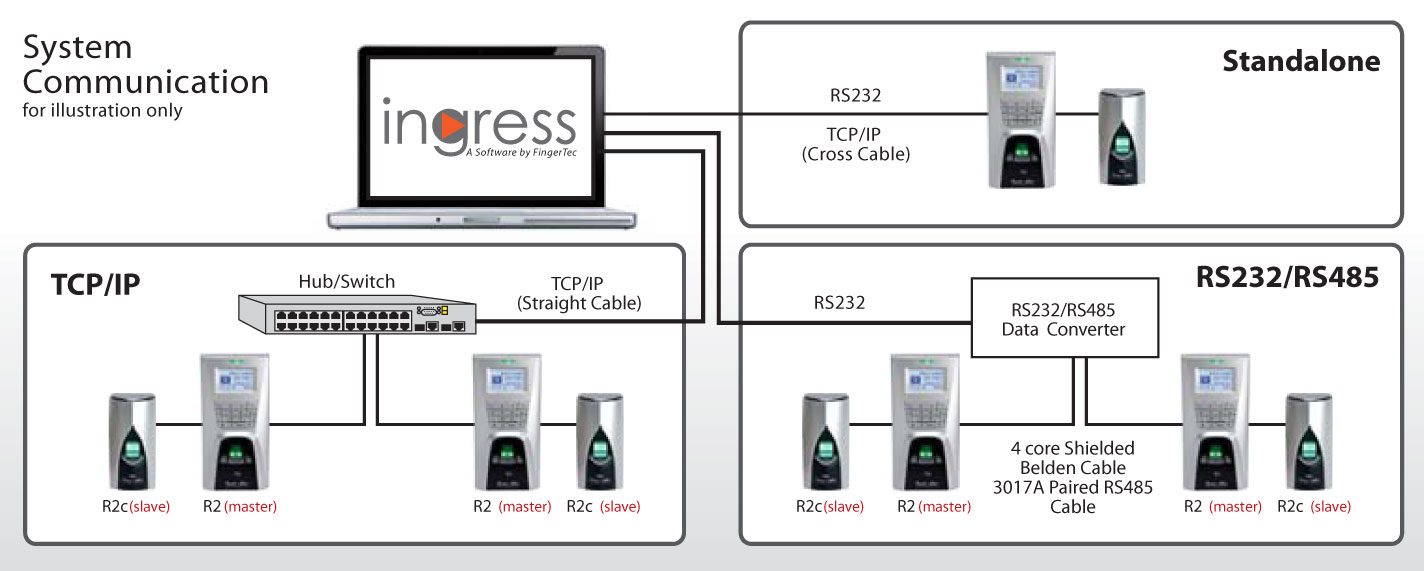

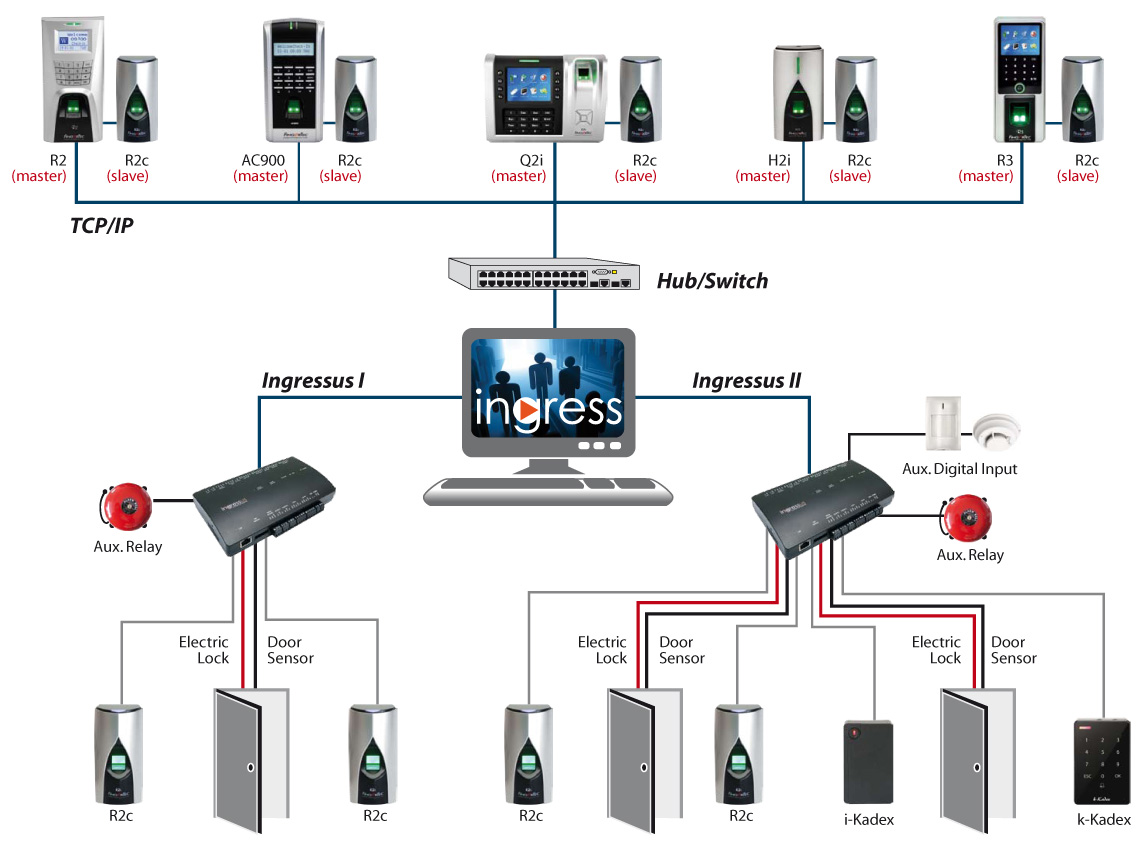

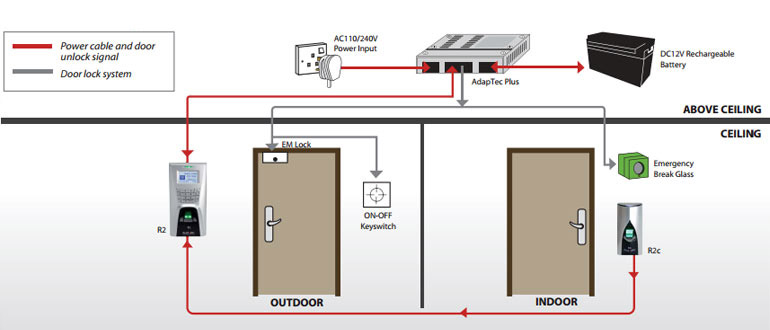

With a sleek and space-saving design, the FingerTec Fingerprint Time Attendance & Door Access Slave Reader R2c connects to the master terminal via the RS485 interface. It is also recommended as a fingerprint slave terminal for FingerTec Ingressus Controllers, contributing to a centralized door access control system.

The FingerTec Fingerprint Time Attendance & Door Access Slave Reader R2c offers small size, cost-effectiveness, flexible installation distance, and simple RS485 connection, allowing for verification and storage in the master or controller, making it a practical choice for enhanced door access control.

SKU: SFPFR2C Categories: , , Tags: , ,

FingerTec Fingerprint Time Attendance & Door Access Slave Reader

Model: R2c



SPECIFICATIONS
  • Model  : R2c
  • Surface Finishing  : Acrylonitrile butadiene styrene (ABS)
  • Type Of Scanner  :   Non coated optical scanner
  • Microprocessor : Managed by master
  • Memory  :   Managed by master
  • Algorithm  :   BioBridge VX 10.0
  • Product Dimension (L X W X H) mm  :  64 x 42 x 135
  • Fingerprint templates : Storage in master terminal
  • Transaction  :  Storage in master terminal
ENROLLMENT & VERIFICATION
  • Methods  :   Fingerprint (1:N), card
  • Recommended fingerprint per user ID  :   Managed by master
  • Fingerprint placement  :   Any angle
  • Verification time (sec) : Managed by master
  • FAR (%) : Managed by master
  • FRR (%) : Managed by master

CARD TECHNOLOGY
  • RFID  :  64-bit, 125kHz,
  • MIFARE  :   MFIS50/S70, 13.56MHz
COMMUNICATIONS
  • Method  : RS485 (Connects to Master Terminal)
OPERATING ENVIRONMENT
  • Temperature (°C) : 0 ~ 45
  • Humidity (%)   : 20 ~ 80
  • Power input : Managed by master

ACCESS CONTROL

  • EM lock driving output  :  Managed by master
  • Alarm output  :  Managed by master
  • Anti Passback  :  Managed by master
