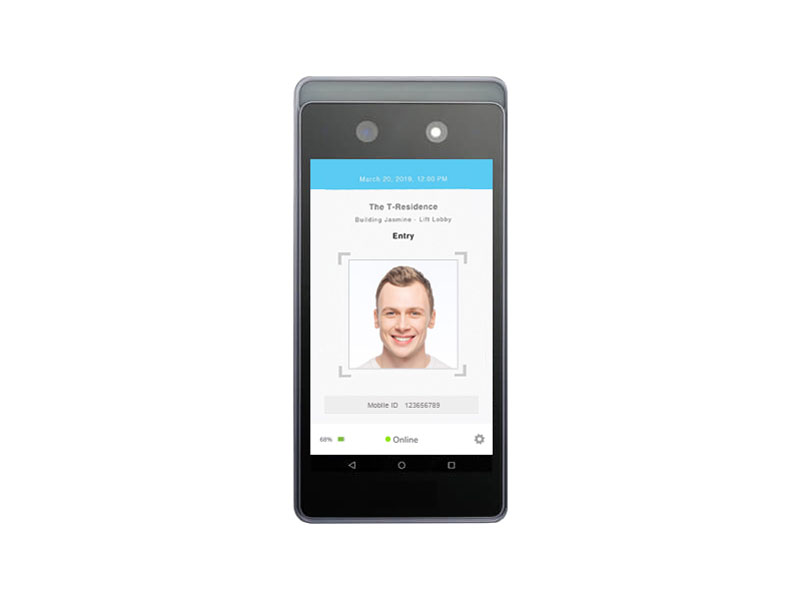

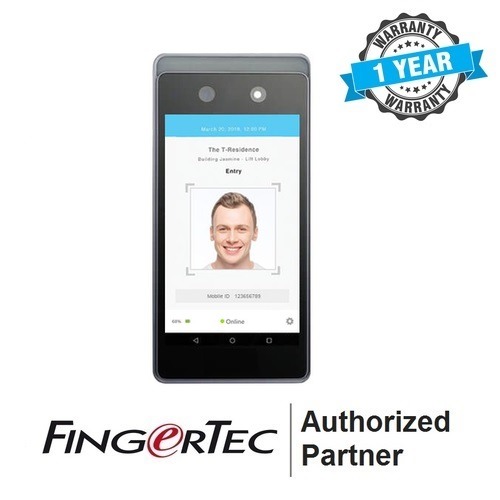

FingerTec Wireless QR Code & Facial Recognition Terminal QF Plus

FingerTec Wireless QR Code & Facial Recognition Terminal

Model: QF Plus

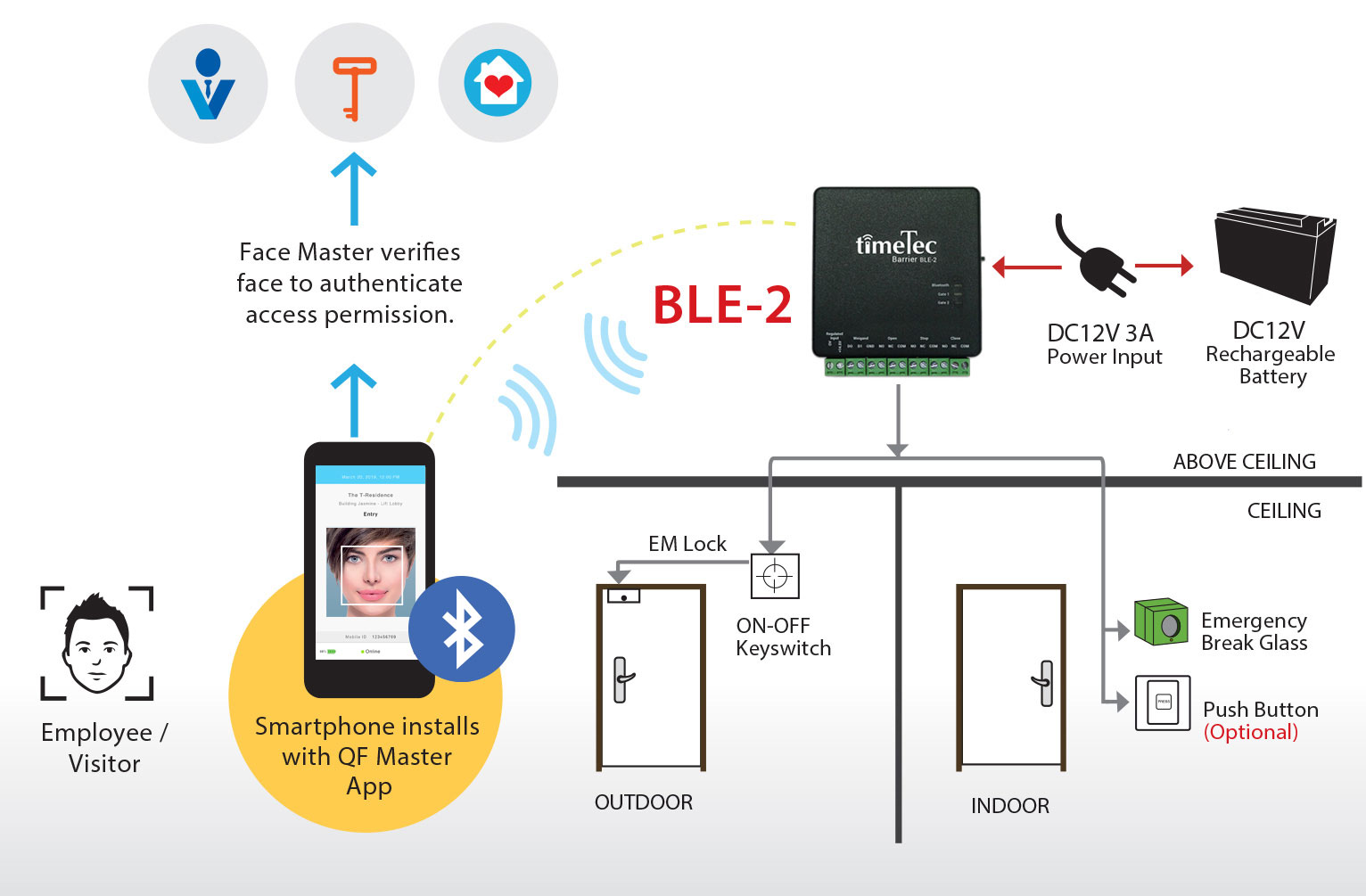

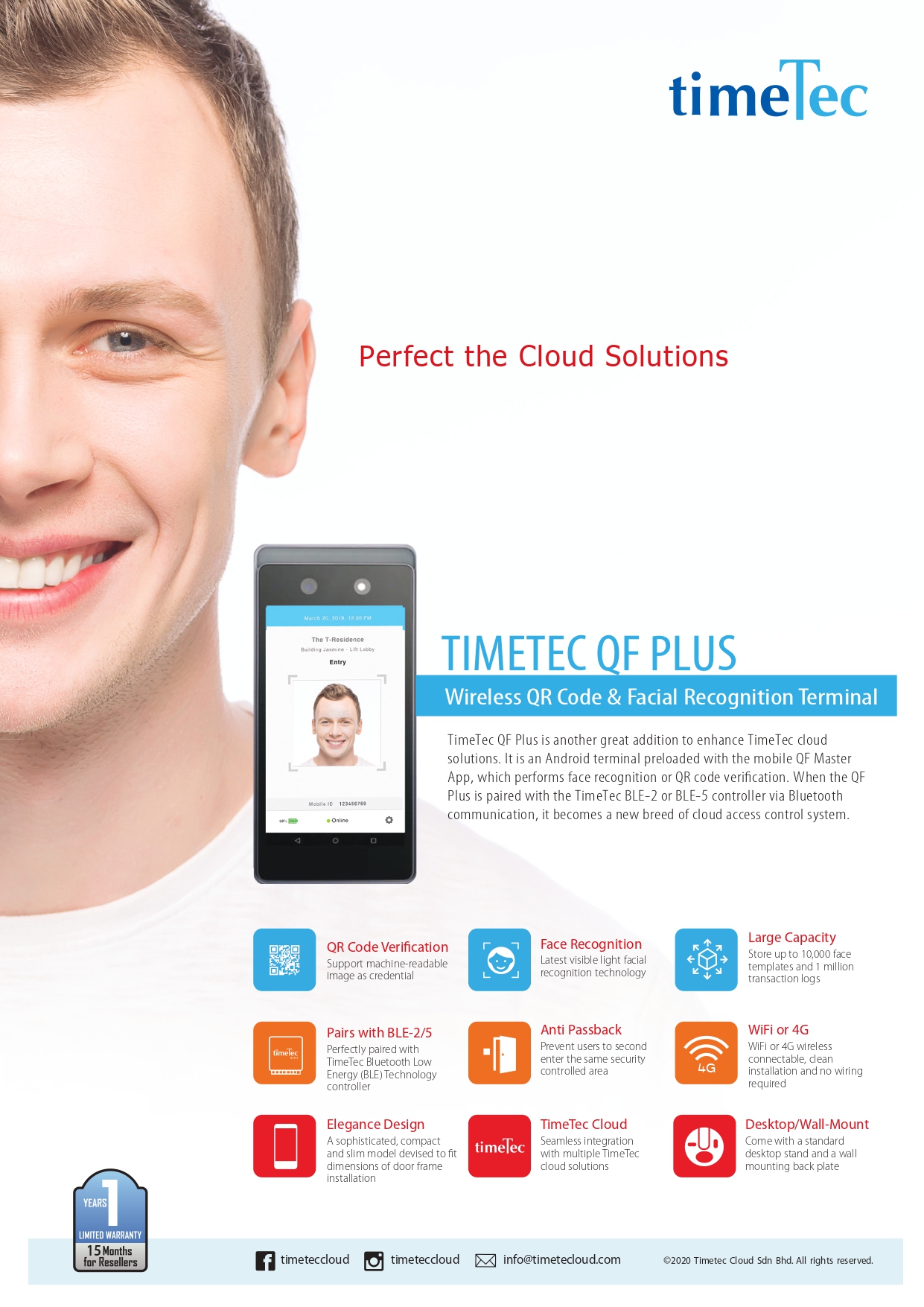

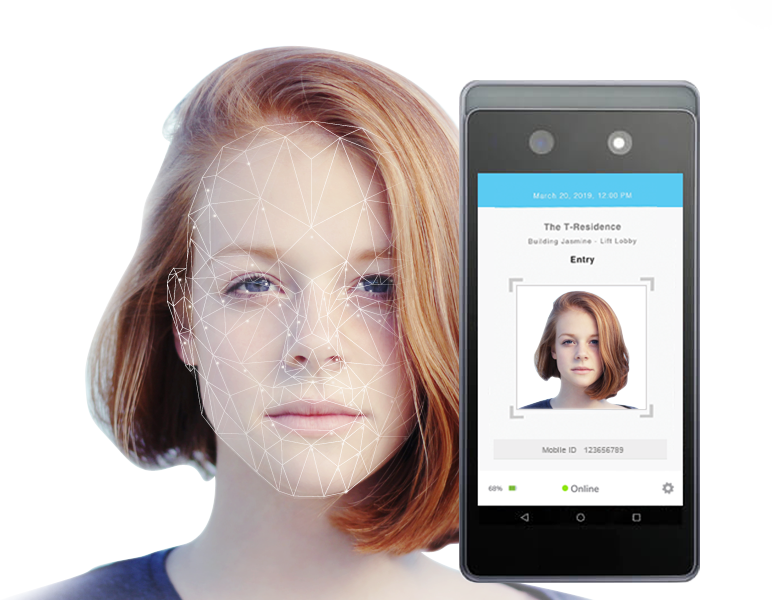

TimeTec QF Plus is another great addition to enhance TimeTec cloud solutions. It is an Android terminal preloaded with the mobile QF Master App, which performs face recognition or QR code verification. When the QF Plus is paired with the TimeTec BLE-2 or BLE-5 controller via Bluetooth communication, it becomes a new breed of cloud access control system.

SPECIFICATIONS



  • SURFACE FINISHING : Acrylonitrile Butadiene Styrene (ABS)
  • TYPE OF SCANNER : 2MP Dual Camera
  • OS : Android 8.1
  • CPU : Quad-core, 1.5GHz
  • MEMORY : RAM 2GB / ROM 16GB
  • ALGORITHM : Face: BioBridge VX 9.0
  • PUSH TECHNOLOGY : Yes
  • DIMENSIONS : 158 * 74 * 15.6mm
  • TEMPLATES, TRANSACTION : 10,000 face templates, 1,000,000 transaction




ENROLLMENT & VERIFICATION

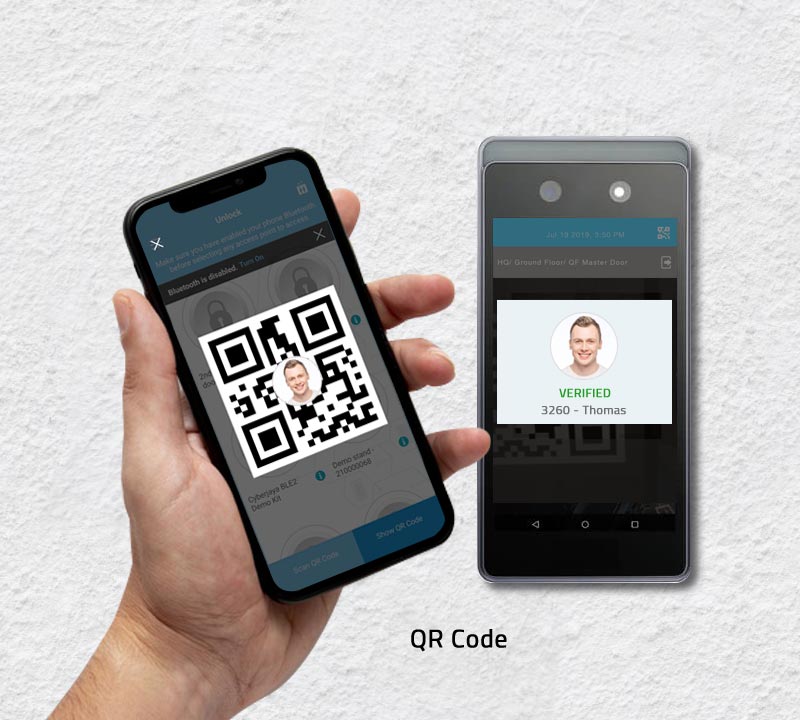

  • METHODS : Face (1:N) and QR Code
  • VERIFICATION TIME (SEC) : Face < 1, QR Code < 1
  • FAR (%), FRR : Face: < 0.01, Face: <0.1

COMMUNICATIONS
  • WI-FI : 2.4GHz, 5GHz, 802.11a / b / g / n
  • BLUETOOTH : 4.0
  • 4G WIRELESS BROADBAND : Yes
  • USB : USB 2.0
  • GPS : GPS / A-GPS

OPERATING ENVIRONMENT
  • POWER : 12V 2A
  • OPERATING TEMPERATURE : -10°C - 50°C
  • OPERATING HUMIDITY : 20% - 80%RH

MULTIMEDIA
  • VOICE : Yes
  • DISPLAY : 720 x 1280, IPS touch LCD
  • PHOTO ID : Yes
  • SPEAKER : 90DB (10cm distance)
  • MICROPHONE : 1m clear voice pickup
  • SHORT MESSAGING : Yes
  • DAY LIGHT SAVING TIMER : Yes



TIME ATTENDANCE

  • WORK CODES : Yes
  • FAST TRANSACTION CHECKING : Yes

ACCESS CONTROL
  • DOOR CONTROLLER : TimeTec BLE-2
  • EM LOCK DRIVING OUTPUT : DC12V relay output
  • LOCK OUTPUT TYPE : NO/NC
  • ANTIPASSBACK : Yes
  • TRANSACTION RECORDS/EVENT CAPACITY : Unlimited, stored in cloud server

GENERAL
  • CLOUD SOFTWARE : i-TimeTec (coming soon), TimeTec Access, TimeTec VMS, TimeTec TA, i-Neighbour.

CERTIFICATIONS
CE, FCC, RoHS
