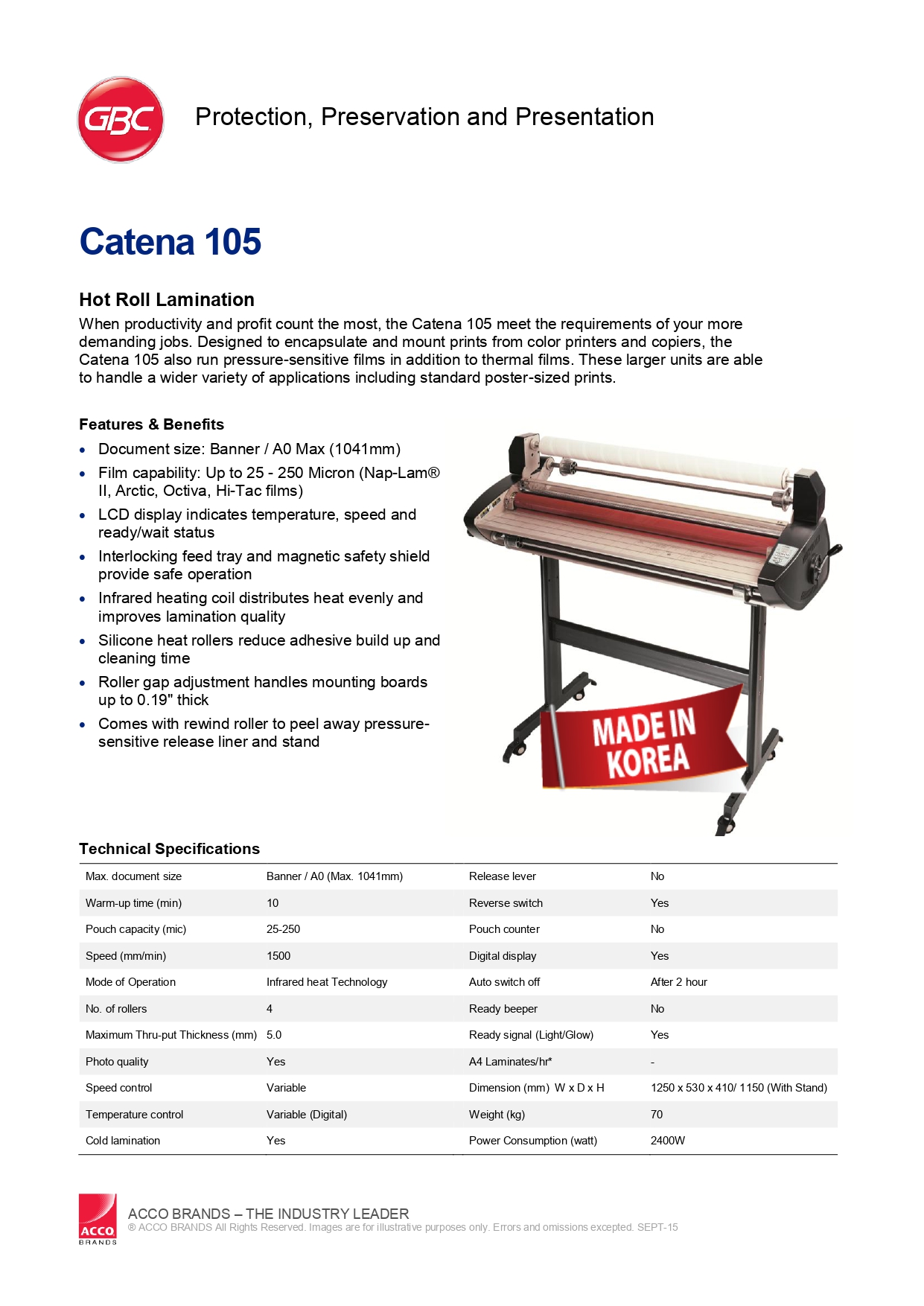

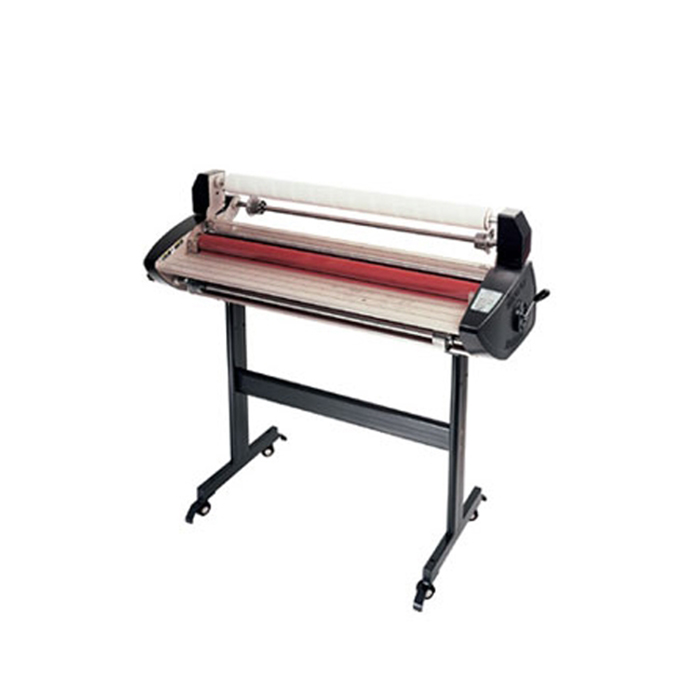

GBC Roll Laminating System
Model: Catena 105 (DISCONTINUED)
FEATURES
- When productivity and profit count the most, the Catena 105 meet the requirements of your more demanding jobs.
- Designed to encapsulate and mount prints from color printers and copiers, the Catena 105 also run pressure-sensitive films in addition to thermal films.
- These larger units are able to handle a wider variety of applications including standard poster-sized prints.
- Document size: Banner / A0 Max (1041mm)
- Film capability: Up to 25 - 250 Micron (Nap-Lam® II, Arctic, Octiva, Hi-Tac films)
- LCD display indicates temperature, speed and ready/wait status
- Interlocking feed tray and magnetic safety shield provide safe operation
- Infrared heating coil distributes heat evenly and improves lamination quality
- Silicone heat rollers reduce adhesive build up and cleaning time
- Roller gap adjustment handles mounting boards up to 0.19" thick
- Comes with rewind roller to peel away pressure-sensitive release liner and stand
SPECIFICATIONS
- Max. Pouch Throat Width : A0 (1041mm)
- Max. Pouch Thickness (mic) : Up to 25 - 250 Micron (Nap-Lam®)
- Number rollers : 4
- Lamination Speed mm/min : 1500 mm/min
- Warranty (year) : 1
- Weights (Kg) : 69.85
- Machine Dimension (HxWxD) mm : 1200 x 1275 x 525
