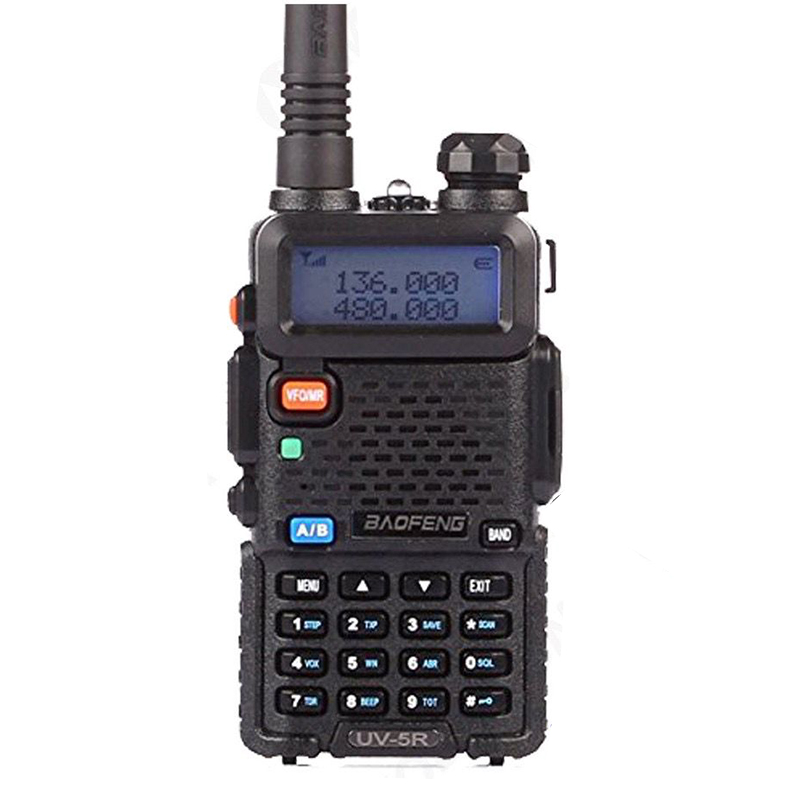

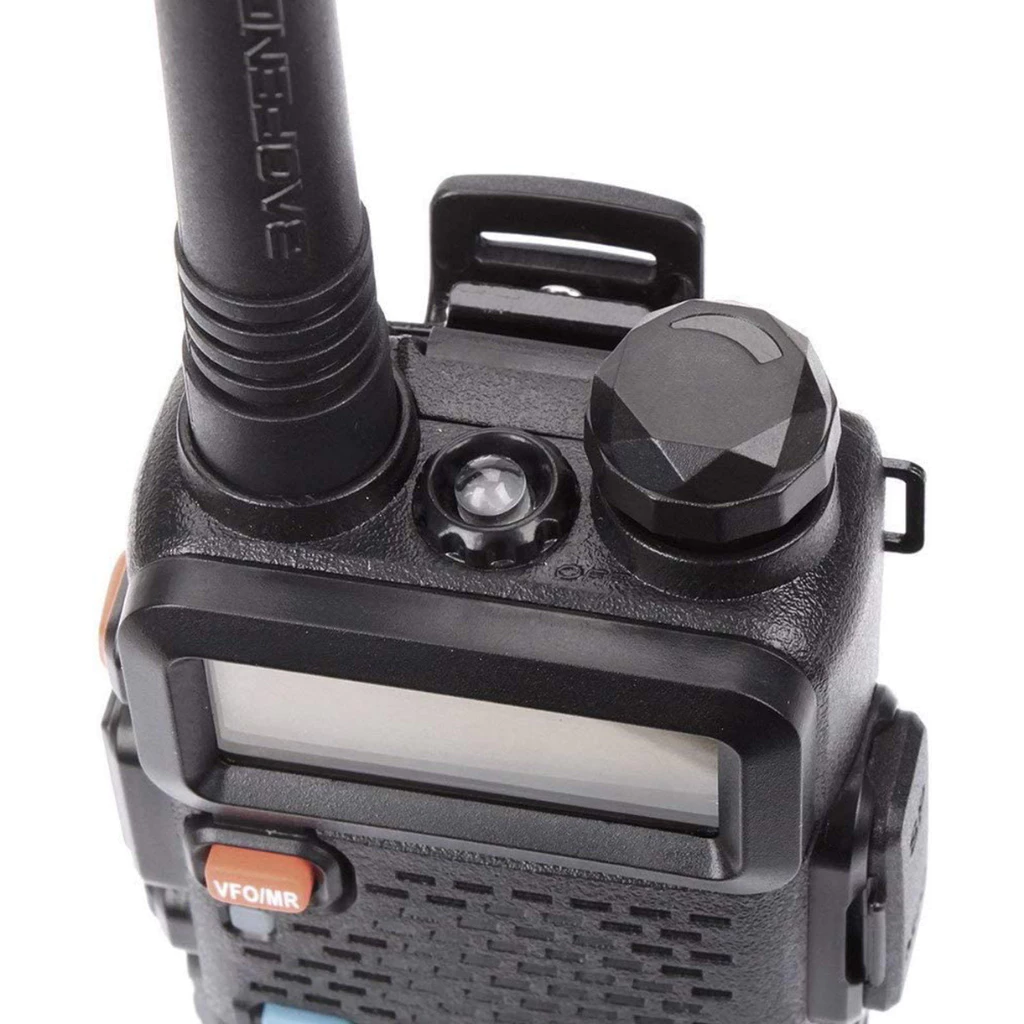

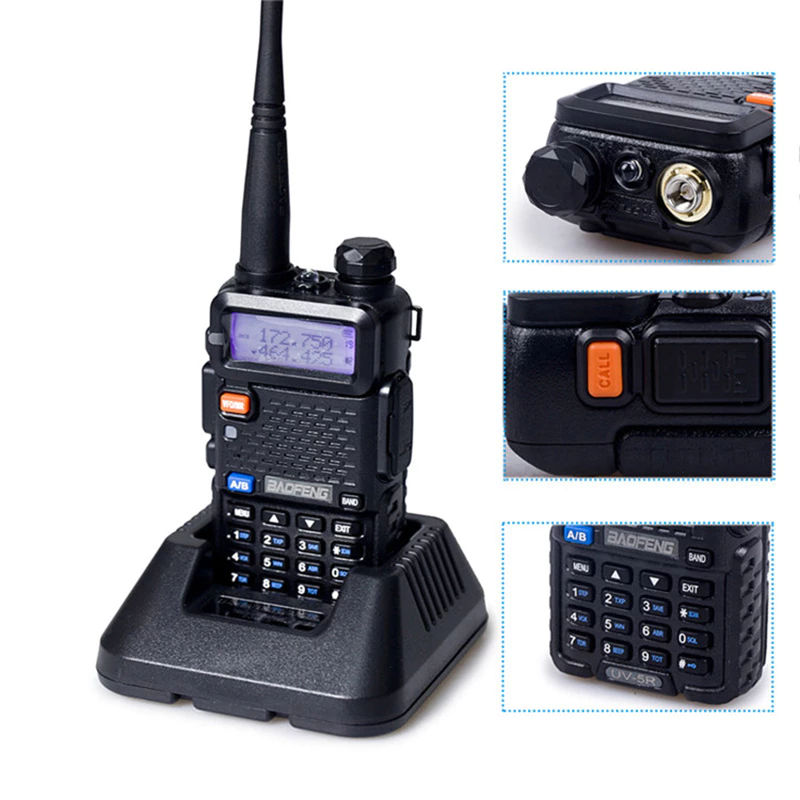

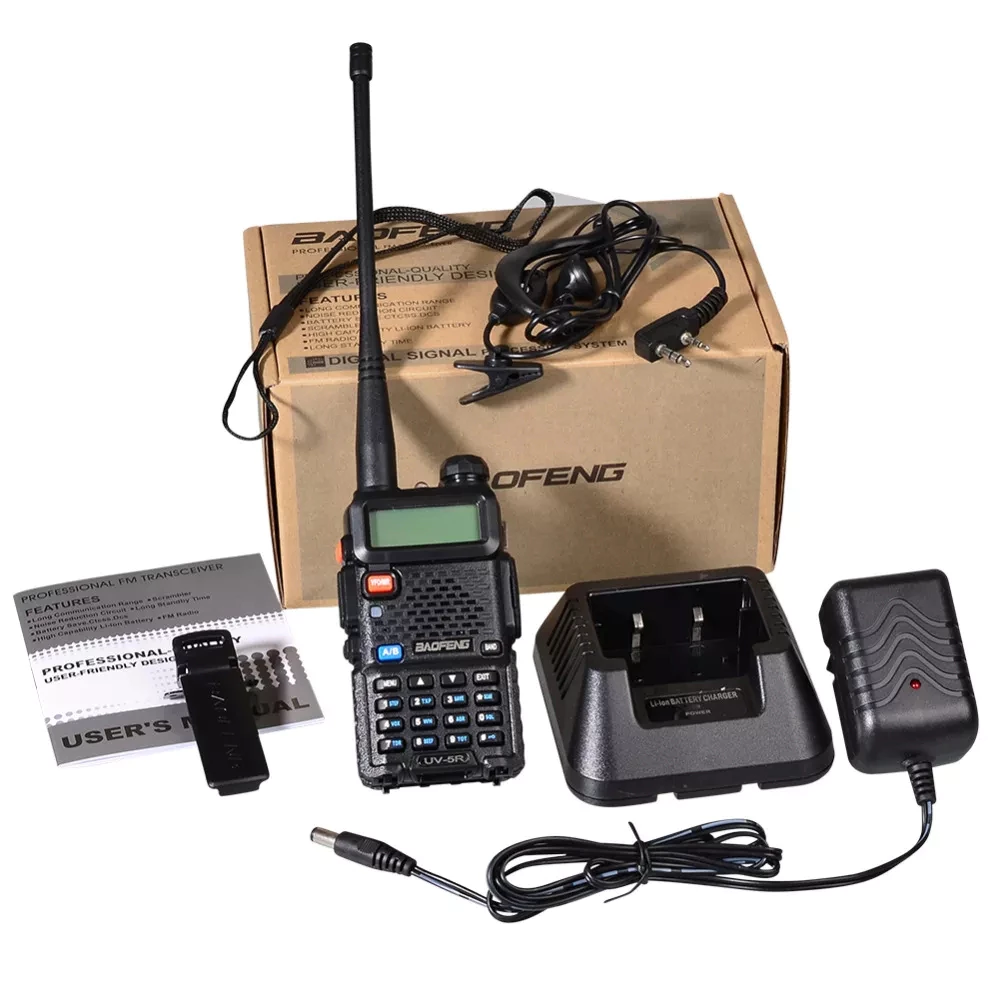

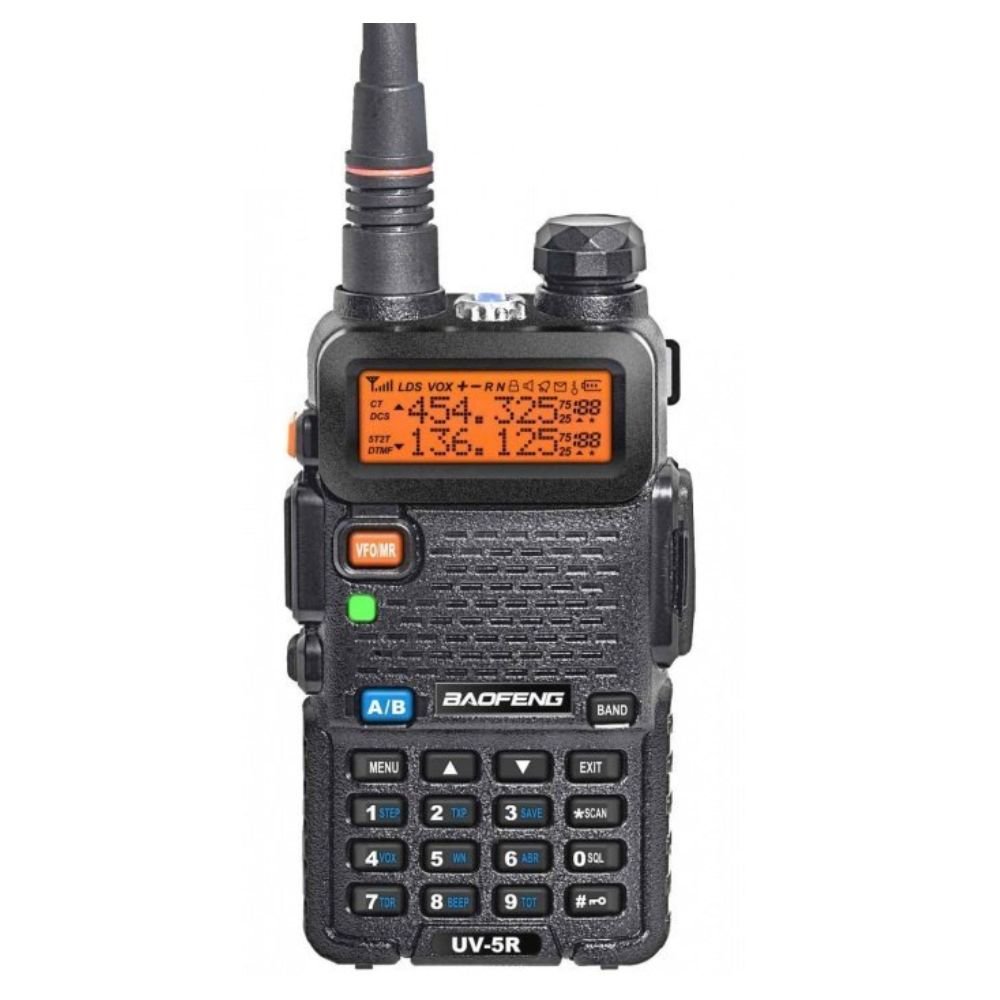

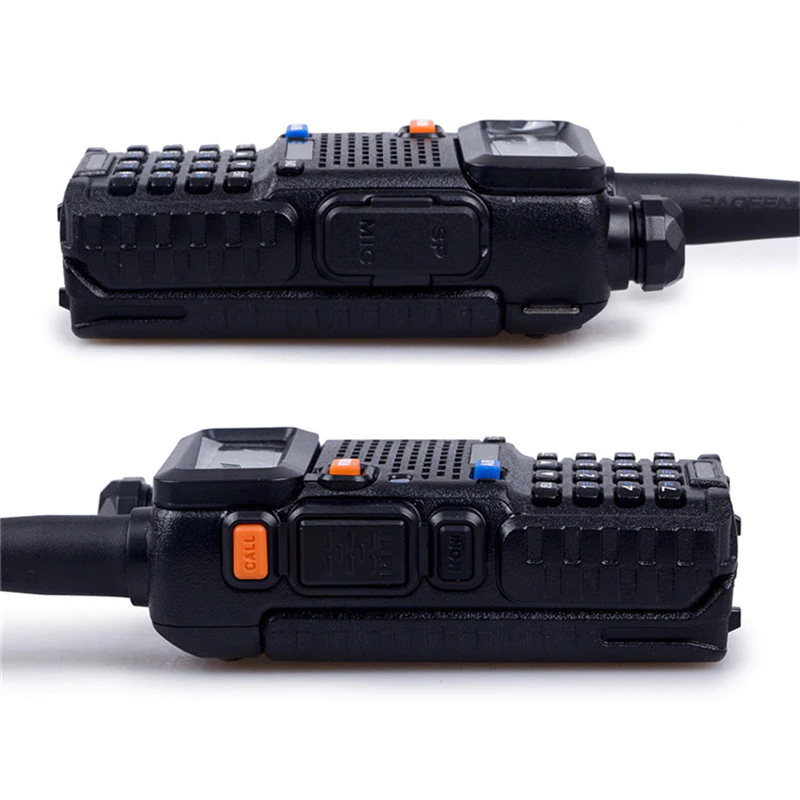

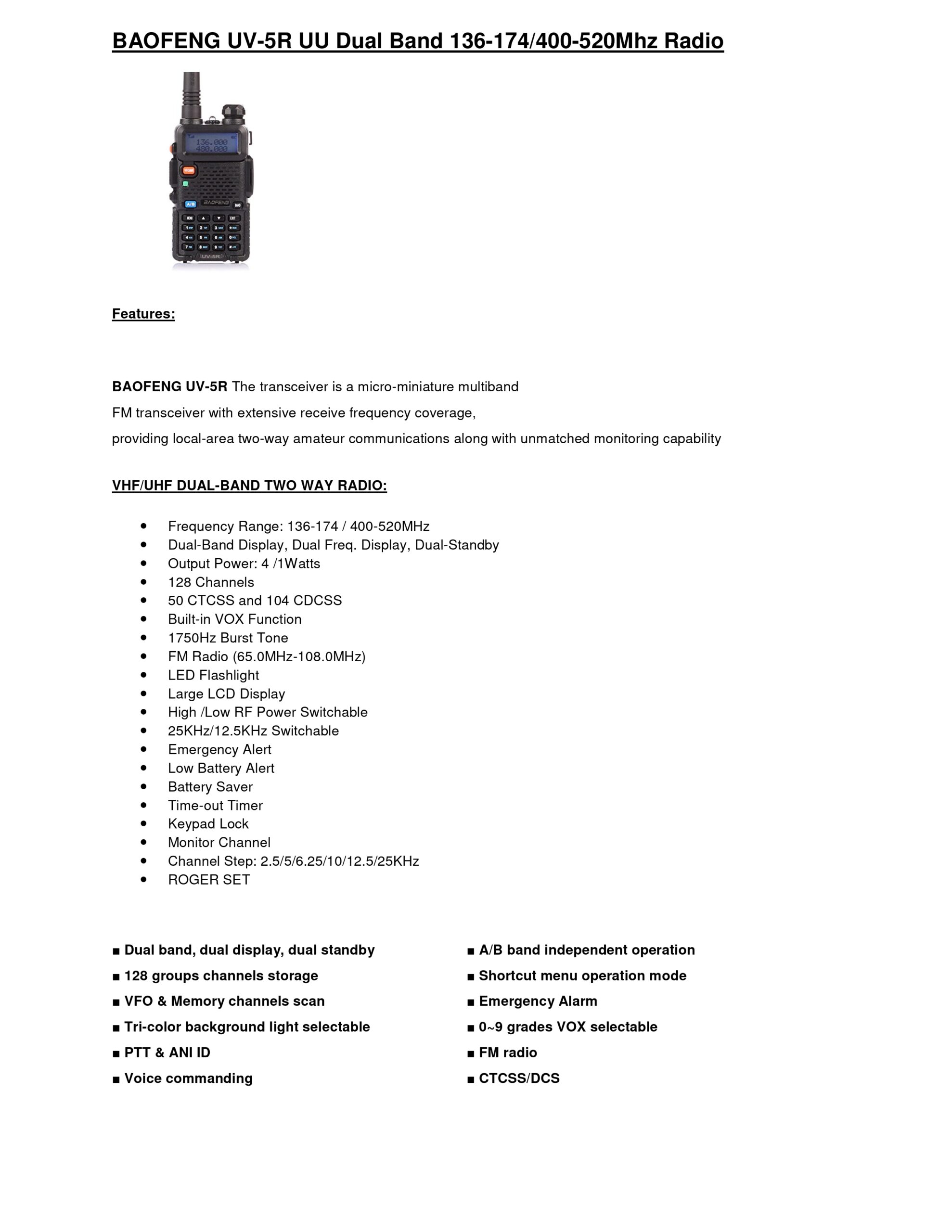

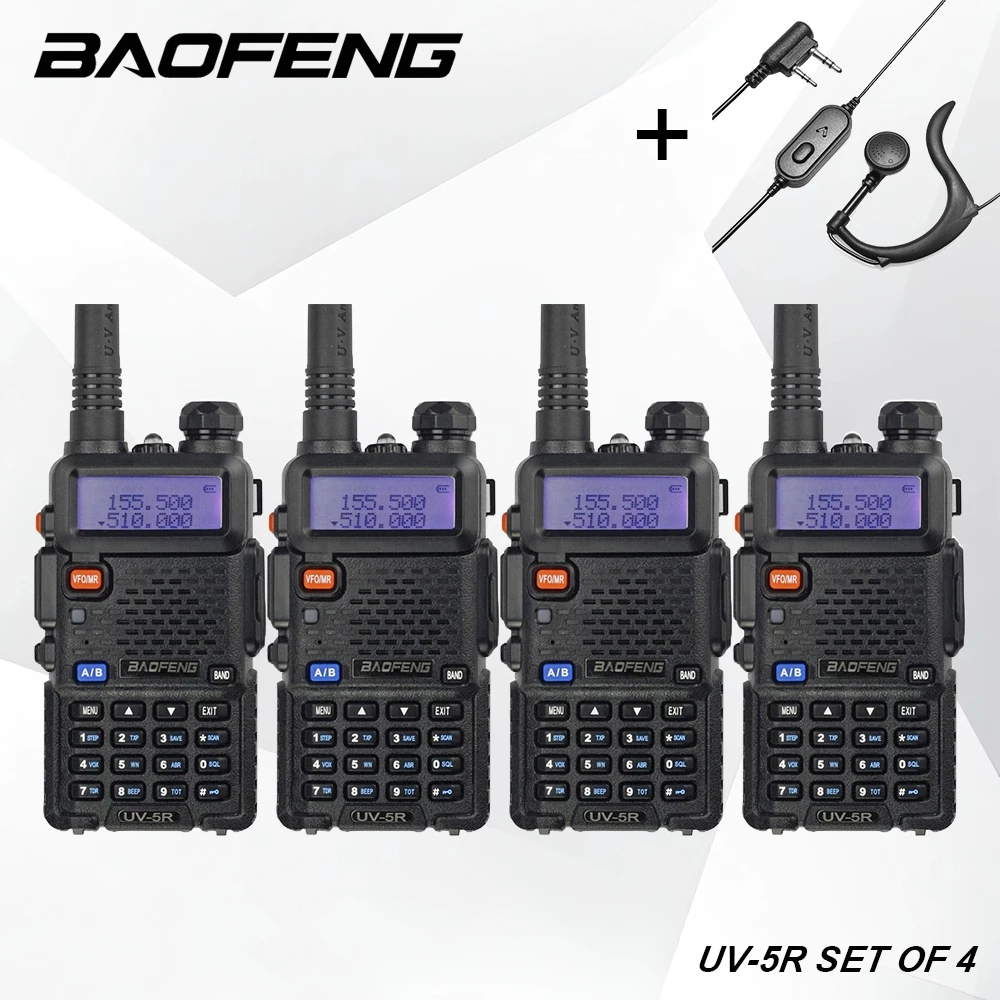

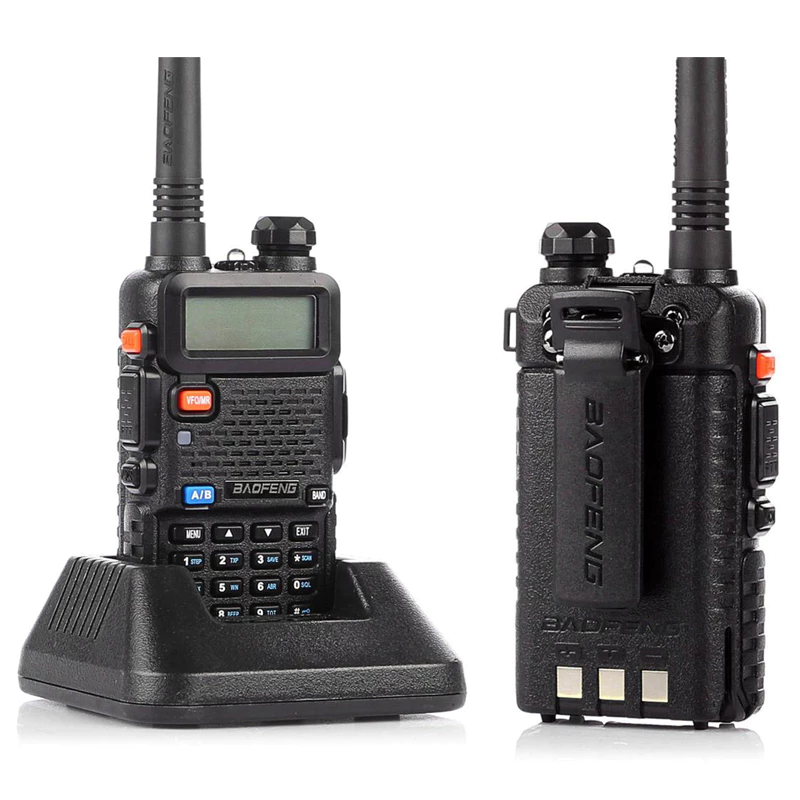

BAOFENG Walkie Talkie
Model : UV-5R

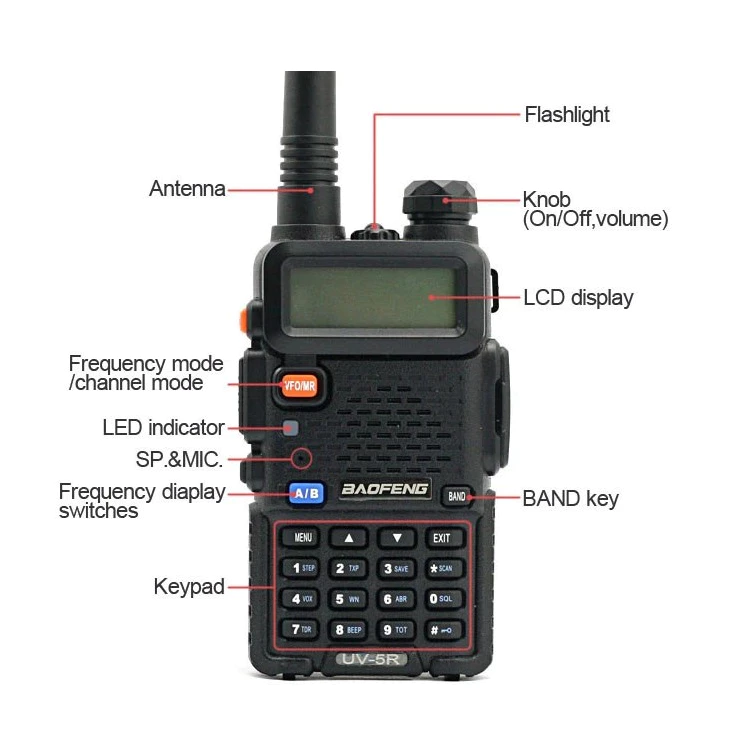

Dual-band handheld transceiver with display function menu on the display “LCD”
Â
FEATURES :
- DTMF encoded
- Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
- Function “VOX” (voice operated transmission).
- Alarm function
- Up to 128 memory channels
- Broadband (Wide) / Narrowband (Narrow), selectable
- High power / low (5 W/1 W) selectable
- Display illumination and programmable keyboard
- Function “beep” on the keyboard
- Dual Watch/dual reception
- Function “OFFSET” (frequency offset for repeater access)
- Battery saving function “SAVE”
- Timer transmission “TOT” programmable
- Selecting the Scan Mode.
- Function Busy Channel Lock “BCLO”
- Built-in RX CTCSS/DCS scan
- Built-in LED flashlight
- Programmable by PC
- Level Threshold “Squelch” adjustable from 0 to 9
- Crossband reception/transmission
- Tone end of transmission
- Built-in key lock
SPECIFICATIONS:
- VHF : 144MHz-148MHz (Rx/Tx)
- UHF : 420MHz-450MHz (Rx/Tx)
- Memory channels : Up to 128 channels
- Frequency stability : 2.5ppm.
- Antenna impedance : 50O
- Operating temperature : -20 ?to +60?
- Supply voltage Rechargeable : Lithium-Ion mAh 7.4V/1800
- Consumption in reception : 380mA
- Consumption in transmission : =1.4 A
- Mode of operation : Simplex or semi-duplex
- Duty cycle : 03/03/54 min. (Rx / Tx / Standby)
- Dimensions : 58mm x 110mm x 32mm
- Weight : 130 g (approximate)
- RF power : 4W/1W
- Emission class : 16KFF3E/11KFF3E (W/N)
- Maximum deviation : =±5 kHz/=±2.5 kHz (W/N)
- Spurious emissions : <-60 dB
- Receiver sensitivity : 0.2 µV(at 12 dB SINAD)
- Intermodulation : 60 dB
