Product Description

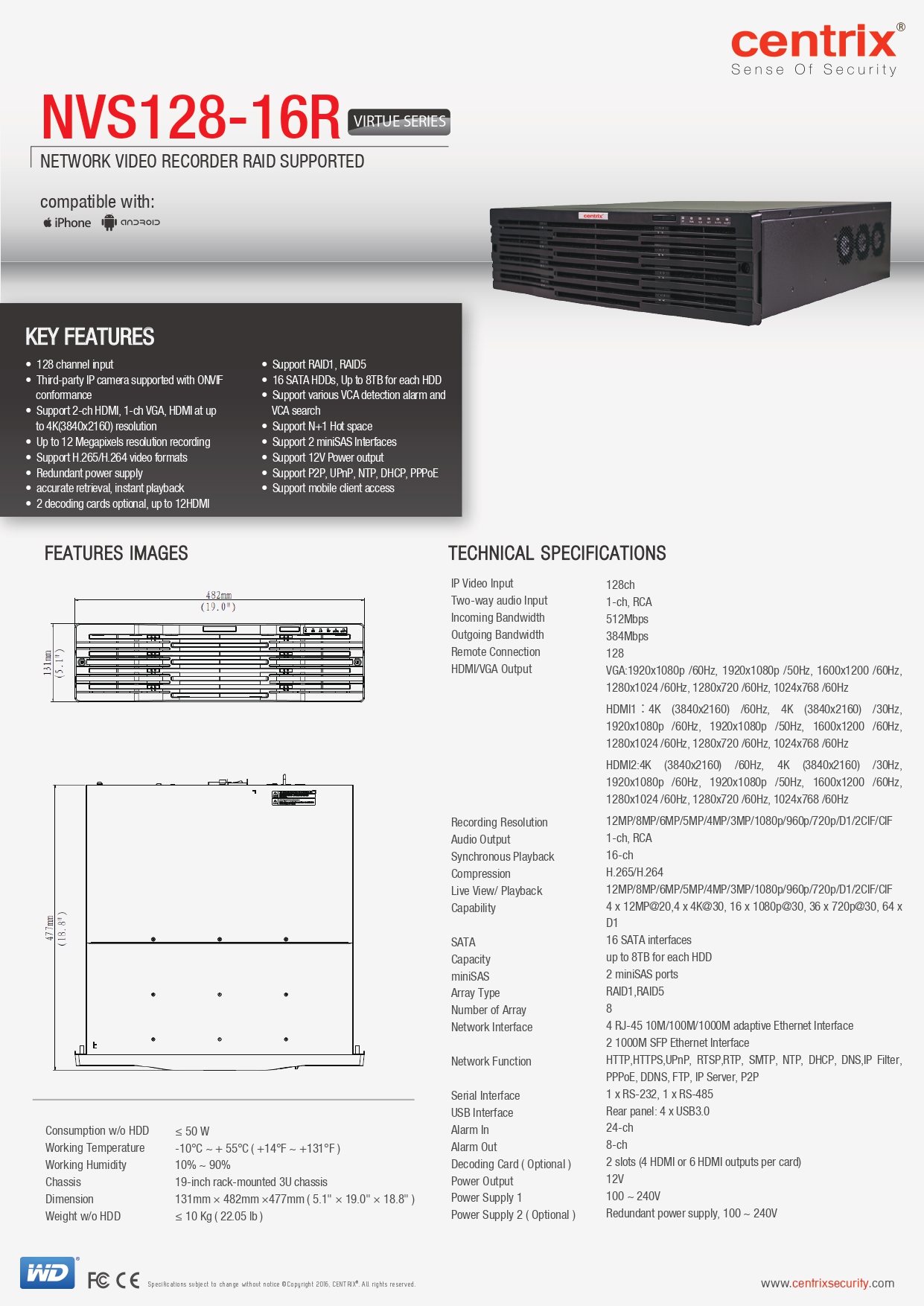

Download Catalogue

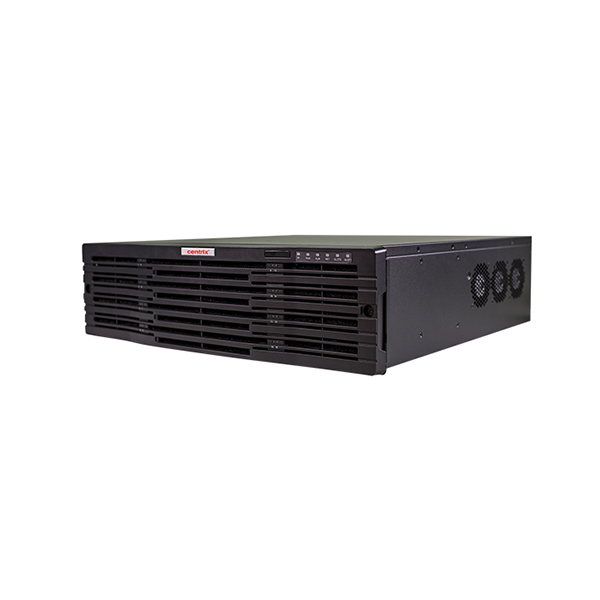

CENTRIX 128 Channel With RAID Network Video Recorder

Model: NVS128-16R

KEY FEATURES

128-channel input
Third-party IP cameras supported with ONVIF conformance
Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
Up to 12 Megapixels resolution recording
Support H.265/H.264 video formats
Accurate retrieval, instant playback
2 decoding cards optional, up to 12 HDMI
Support RAID1, RAID5
16 SATA HDDs, Up to 8TB for each HDD
Support various VCA detection alarm and VCA search
Support N+1 Hot space
Support 2 miniSAS Interfaces
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access

TECHNICAL SPECIFICATIONS

IP VIDEO INPUT : 128-ch
TWO-WAY AUSIO INPUT : 1-ch, RCA
INCOMING BANDWIDTH : 512Mbps
OUTBOING BANDWIDTH : 320Mbps
REMOTE CONNECTION : 128 HDMI/VGA OUTPUT VGA:1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI1：4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2:4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
AUDIO OUTPUT : 1-ch, RCA
RECORDING RESOLUTION : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
SYNCHRONOUS PLAYBACK : 16-ch
COMPRESSION : H.265/H.264
LIVE VIEW/PLAYBACK : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
CAPABILITY : 4 x 12MP@20,4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x
D1
SATA : 16 SATA interface
CAPACITY : up to 8TB for each HDD
ARRAY TYPE : RAID1,RAID5
NUMBER OF ARRAY : 8
NETWORK INTERFACE : 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface
NETWORK FUNCTION : HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P
SERIAL INTERFACE : 1 x RS-232, 1 x RS-485
USB INTERFACE : Rear panel: 4 x USB3.0
ALARM IN : 24-ch
ALARM OUT : 8-ch
DECODING CARD (OPTIONAL) : 2 slots (4 HDMI or 6 HDMI outputs per card)
SUPPORTED STANDARD : IEEE 802.3at, IEEE 802.3af
POWER SUPPLY : 100 ~ 240 VAC
POWER OUTPUT : 12V
WORKING TEMPERATURE : -10°C ~ + 55°C ( +14°F ~ +131°F )
WORKING HUMIDITY : 10% ~ 90%
DIMENSION : 131mm × 482mm ×477mm ( 5.1″ × 19.0″ × 18.8″ )
WEIGHT W/O HDD : 10 Kg ( 22.05 lb )
