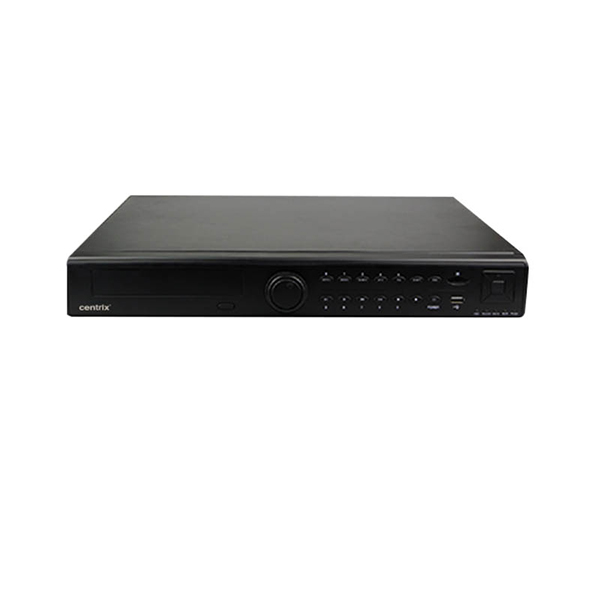

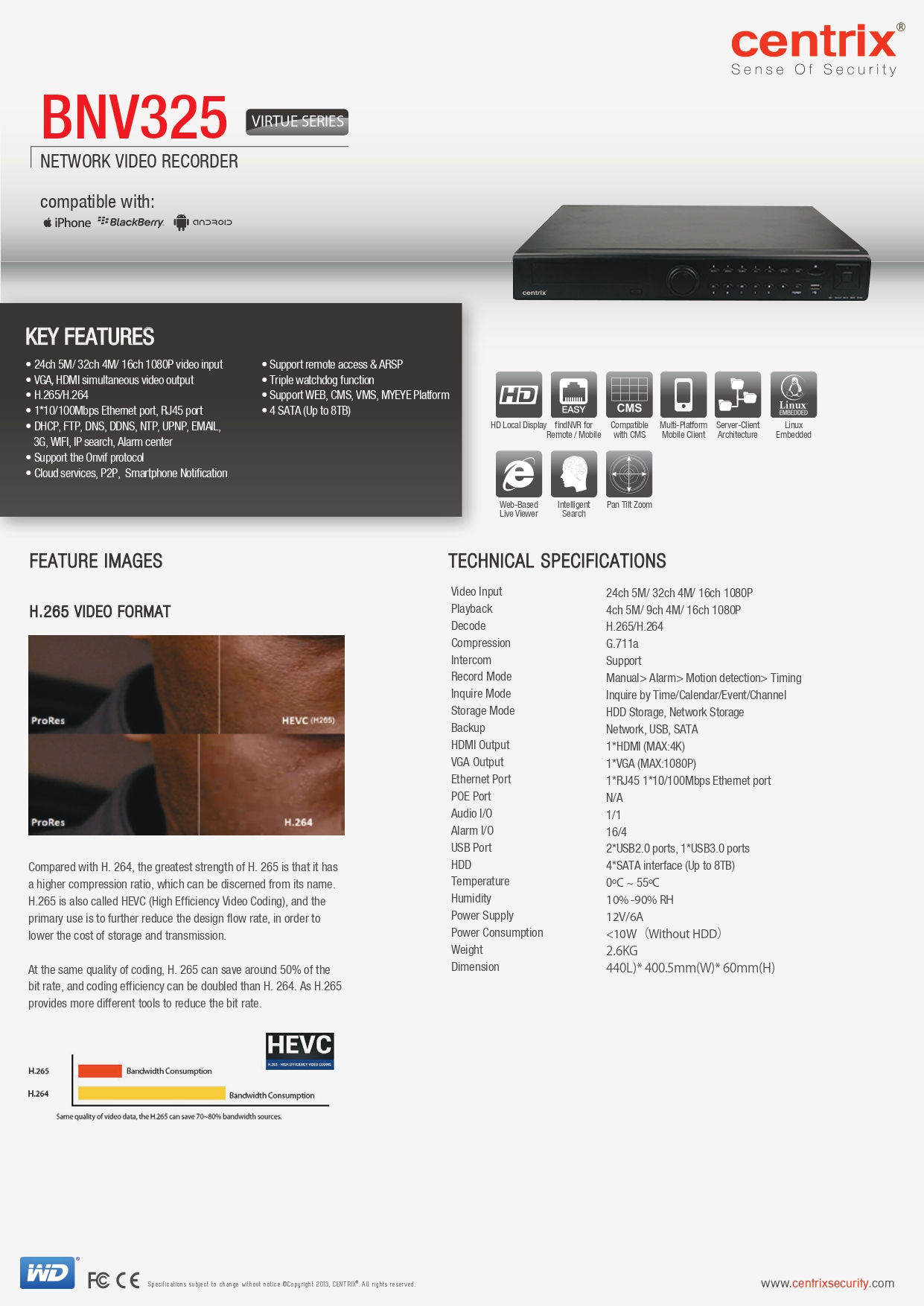

CENTRIX 24 Channel HDVS Network Video Recorder
Model: BNV325
KEY FEATURES- 24ch 5M/ 32ch 4M/ 16ch 1080P video input
- VGA, HDMI simultaneous video output
- H.265/H.264
- 1*10/100Mbps Ethernet port, RJ45 port
- DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,3G, WIFI, IP search, Alarm center
- Support the Onvif protocol
- Cloud services, P2P, Smartphone Notification
- Support remote access & ARSP
- Triple watchdog function
- Support WEB, CMS, VMS, MYEYE Platform
- 4 SATA (Up to 8TB)
TECHNICAL SPECIFICATIONS- Video Input : 24ch 5M/ 32ch 4M/ 16ch 1080P
- Playback : 4ch 5M/ 9ch 4M/ 16ch 1080P
- Decode : H.265/H.264
- Compression : G.711a
- Intercom : Support
- Record Mode : Manual> Alarm> Motion detection> Timing
- Inquire Mode : Inquire by Time/Calendar/Event/Channel
- Storage Mode : HDD Storage, Network Storage
- Backup : Network, USB, SATA
- HDMI Output : 1*HDMI (MAX:4K)
- VGA Output : 1*VGA (MAX:1080P)
- Ethernet Port : 1*RJ45 1*10/100Mbps Ethernet port
- POE Port : N/A
- Audio I/O : 1-Jan
- Alarm I/O : 16-Apr
- USB Port : 2*USB2.0 ports, 1*USB3.0 ports
- HDD : 4*SATA interface (Up to 8TB)
- Temperature : 0ºC ~ 55ºC
- Humidity : 10% -90% RH
- Power Supply : 12V/6A
- Power Consumption : <10WWithout HDD
- Weight : 2.6kg
- Dimension : 440(L) 400.5mm(W) 60mm(H)
