DAHUA Video Intercom Outdoor Station VTO2111D-PS2

The Dahua VTO2111D-P-S2 Villa Outdoor Station, a robust entry control device, features a high-definition WDR camera for clear surveillance in varied lighting. With an IP65 rating and an operating range of -30°C to 60°C, it excels in diverse environments.

Dahua VTO2111D-P-S2 Villa Outdoor Station supports auto IR illumination, day/night functionalities, and versatile unlock options like card/app remote access. Dahua VTO2111D-P-S2 Villa Outdoor Station enables two-way voice calls, tamper alarms, accommodates 10,000 cards, and controls two locks. Its comprehensive security suite offers flexible access control, making it an ideal choice for residential security, ensuring seamless monitoring and efficient access management in homes.

#DahuaVTO2111DPS2 #VillaOutdoorStation #SecuritySystem #HomeSecurity #DahuaTechnology #OutdoorStation #DAHUA

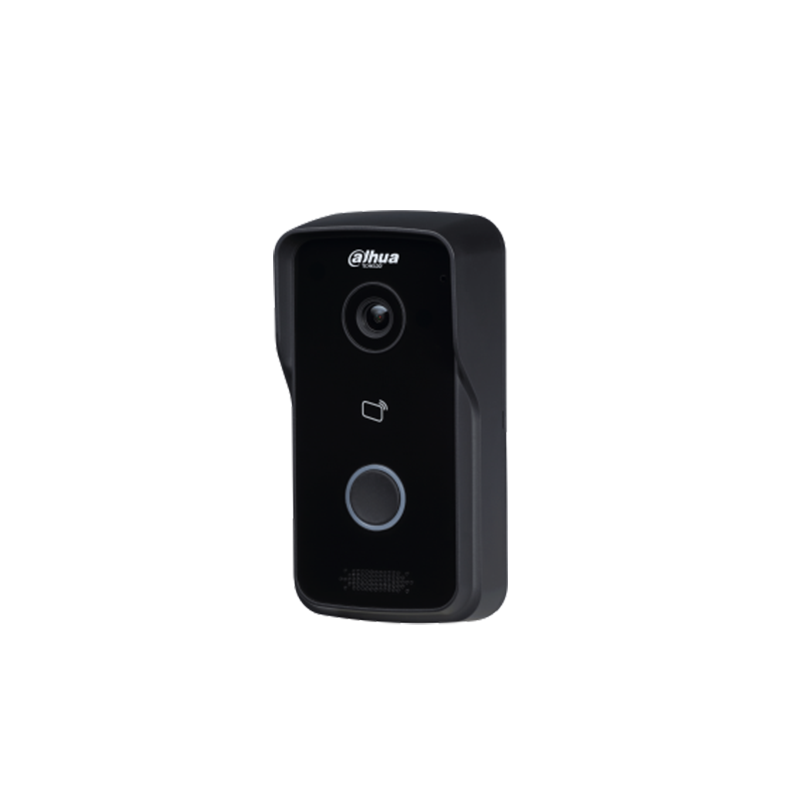

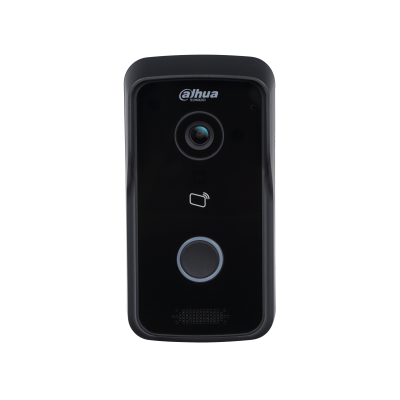

Dahua VTO2111D-P-S2 Villa Outdoor Station

Model:  VTO2111D-P-S2



FEATURES

  • High definition camera; WDR
  • Operating temperature -30°C–60°C
  • IP65(Silicone sealant is needed. For details, see the quick start guide.)
  • Supports auto IR illumination and D/N
  • Card/app remote/indoor monitor unlock
  • Supports two-way voice call; support calls between door stations and app
  • 10,000 cards
  • Tamper Alarm
  • Support standard PoE power supply
  • Control two locks

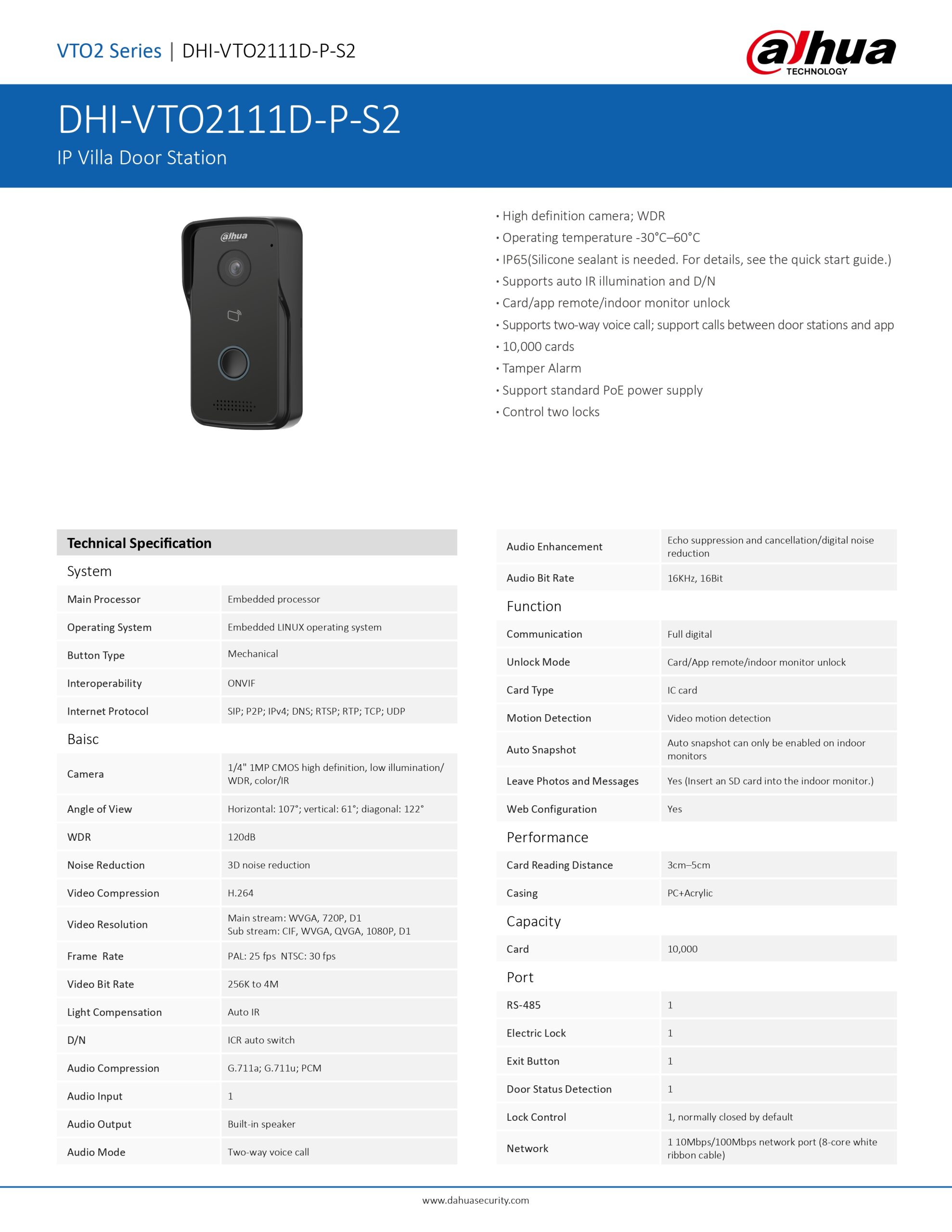

SPECIFICATIONS

  • System
    1. Main Processor: Embedded processor
    2. Operating System: Embedded LINUX operating system
    3. Button Type: Mechanical
    4. Interoperability: ONVIF
    5. Internet Protocol: SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
  • Baisc
    1. Camera: 1/4" 1MP CMOS high definition, low illumination/WDR, color/IR
    2. Angle of View: Horizontal: 107°; vertical: 61°; diagonal: 122°
    3. WDR: 120dB
    4. Noise Reduction: 3D noise reduction
    5. Video Compression: H.264
    6. Video Resolution:
    7. Main stream: WVGA, 720P, D1/Sub stream: CIF, WVGA, QVGA, 1080P, D1
    8. Frame Rate: PAL: 25 fps NTSC: 30 fps
    9. Video Bit Rate: 256K to 4M
    10. Light Compensation: Auto IR
    11. D/N: ICR auto switch
    12. Audio Compression: G.711a; G.711u; PCM
    13. Audio Input: 1
    14. Audio Output: Built-in speaker
    15. Audio Mode: Two-way voice call
    16. Audio Enhancement: Echo suppression and cancellation/digital noise reduction
    17. Audio Bit Rate: 16KHz, 16Bit
  • Function
    1. Communication: Full digital
    2. Unlock Mode: Card/App remote/indoor monitor unlock
    3. Card Type: IC card
    4. Motion Detection: Video motion detection
    5. Auto Snapshot: Auto snapshot can only be enabled on indoor monitors
    6. Leave Photos and Messages: Yes (Insert an SD card into the indoor monitor.)
    7. Web Configuration: Yes
  • Performance
    1. Card Reading Distance: 3cm–5cm
    2. Casing: PC+Acrylic
  • Capacity
    1. Card: 10,000
  • Port
    1. RS-485: 1
    2. Electric Lock: 1
    3. Exit Button: 1
    4. Door Status Detection: 1
    5. Lock Control: 1, normally closed by default
    6. Network: 1 10Mbps/100Mbps network port (8-core white ribbon cable)
  • Alarm
    1. Tamper: Yes
  • General
    1. Color: Black
    2. Power Supply Mode: 12V DC 1A/Standard PoE
    3. Installation: Surface mount
    4. Certifications: CE/FCC/UL
    5. Accessory: Brackets and alarm ribbon cable
    6. Dimensions: 135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")
    7. Protection Grade: IP65 (silicone sealant is needed, see the quick start guide)
    8. Operating Temperature: -30°C to +60°C (-20°F to +60°F )
    9. Operating Humidity: 10%RH–90%RH (non-condensing)
    10. Operating Altitude: Beneath 3000 m (9842.52 ft)
    11. Power Consumption: Standby≤1W, working≤5W
    12. Gross Weight: 326 g (0.72 lb)
