Dahua VTO2202F-P-S2 Villa Outdoor Station

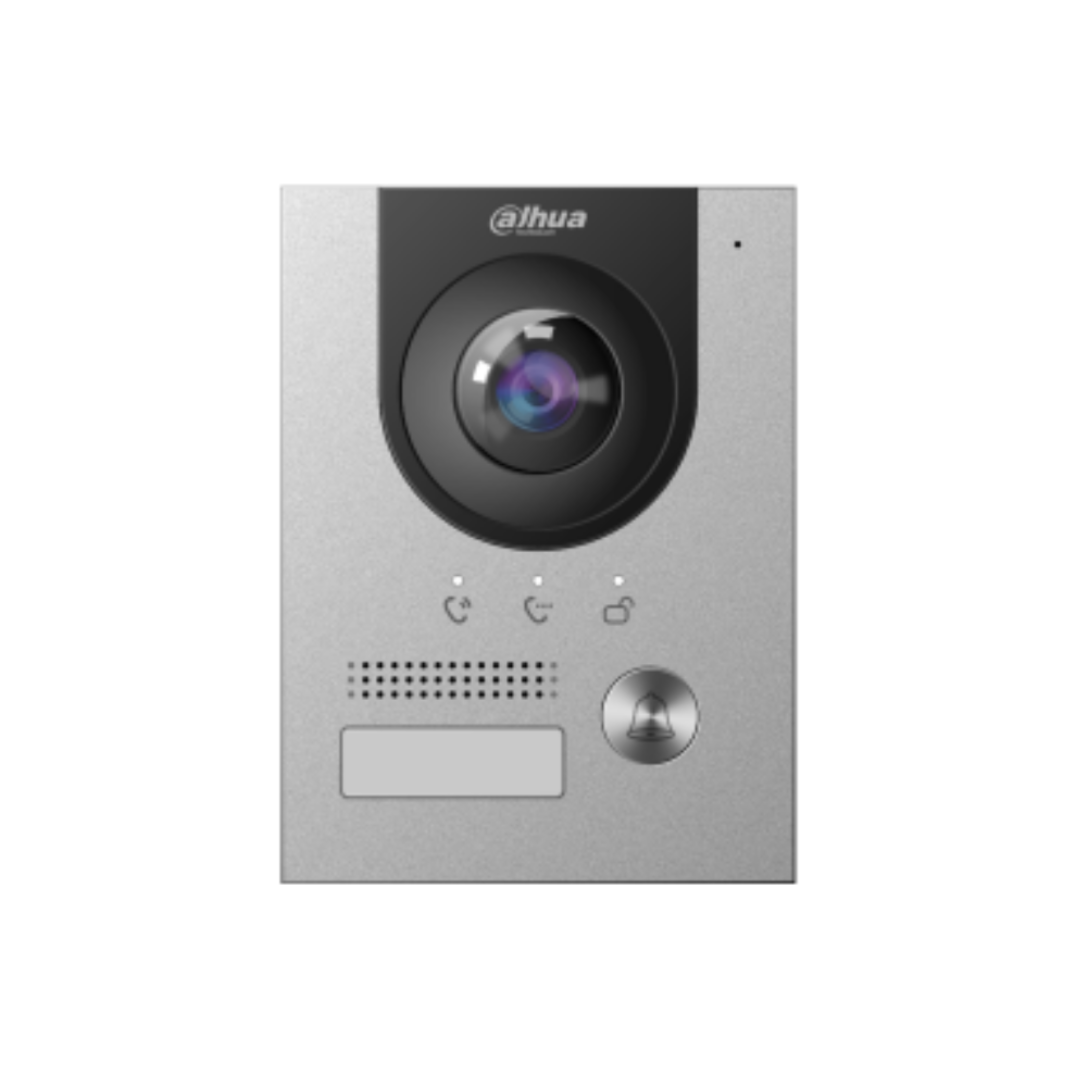

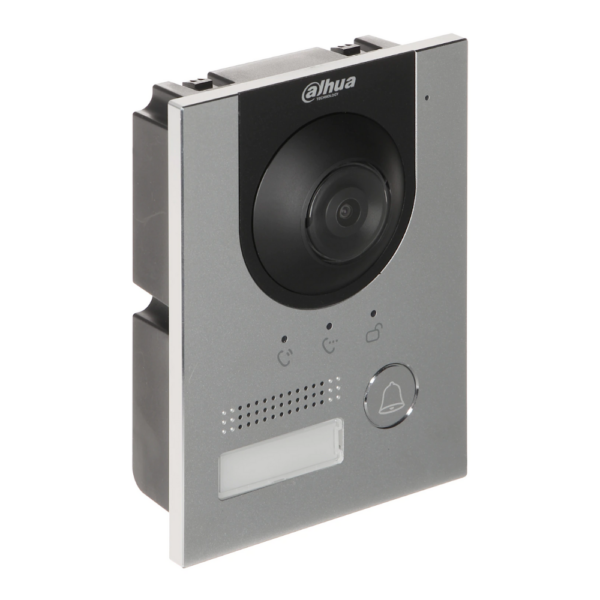

The Dahua VTO2202F-P-S2 Villa Outdoor Station is a versatile entry control system featuring an anodized aluminum front panel and a CMOS low-illumination 2MP HD 160° fisheye camera.
Dahua VTO2202F-P-S2 Villa Outdoor Station offers video intercom functionality and access control support for two locks, accessible remotely via a mobile app for conversations or door unlocking. Compatible with 2-wire and RJ45 interfaces, Dahua VTO2202F-P-S2 Villa Outdoor Station’s IK07&IP65-rated, supporting H.265 compression, surface, and flush mounts, and powered by PoE, ensuring robust security solutions for residential access management.

#DahuaVTO2202FPS2 #VillaOutdoorStation #SecuritySystem #HomeSecurity #DahuaTechnology #OutdoorStation

Dahua VTO2202F-P-S2 Villa Outdoor Station

Model:  VTO2202F-P-S2



FEATURES

  • Anodized alumimum front panel.
  • CMOS low illumination 2MP HD colorful 160° fisheye camera.
  • Video intercom function.
  • Access control function that supports two locks.
  • Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
  • Compatible with 2-wire interface & RJ45 interface.
  • IK07&IP65.
  • Support H.265.
  • Support surface and flush mount.
  • PoE.

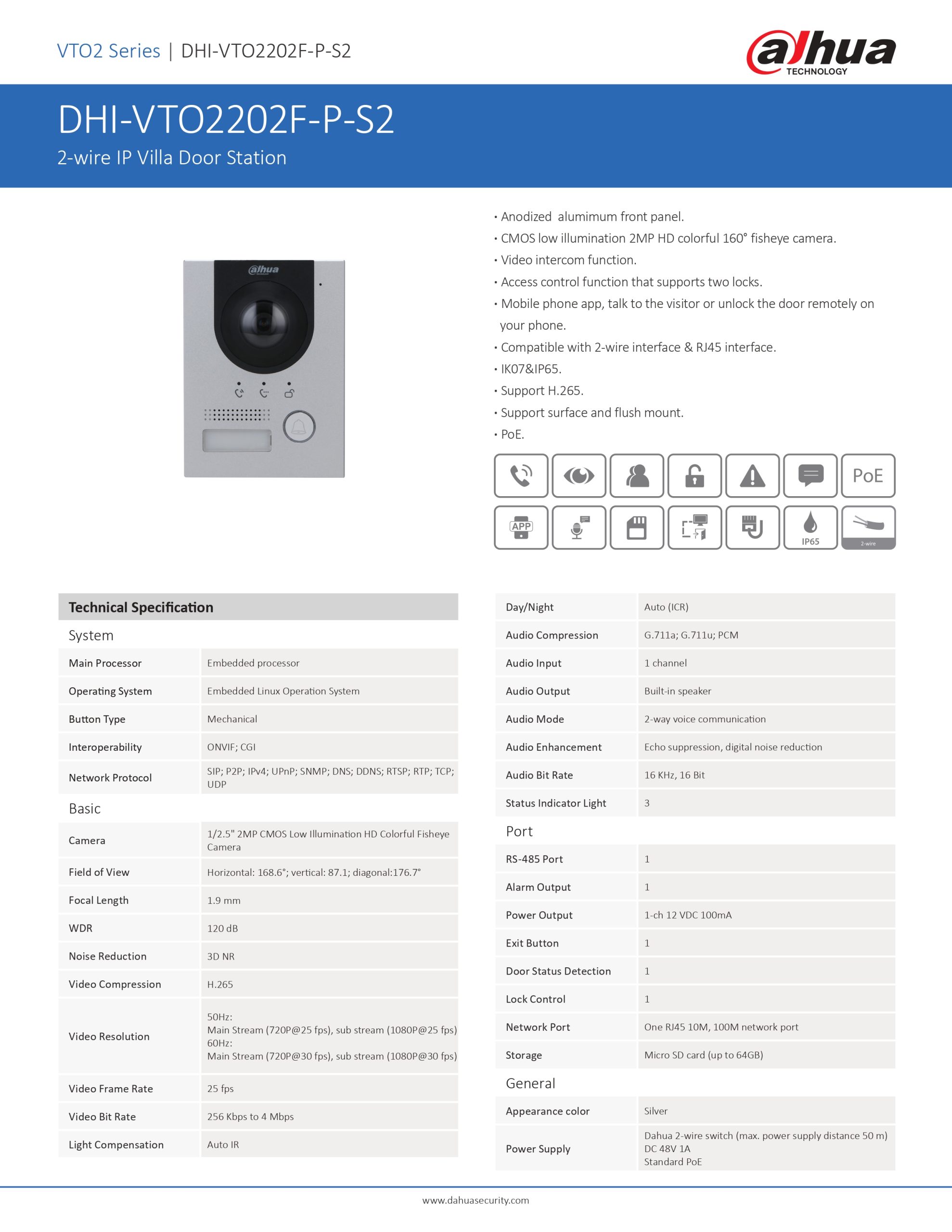

SPECIFICATIONS

  • System
    1. Main Processor: Embedded processor
    2. Operating System: Embedded Linux Operation System
    3. Button Type: Mechanical
    4. Interoperability: ONVIF; CGI
    5. Network Protocol: SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
  • Basic
    1. Camera: 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
    2. Field of View: Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
    3. Focal Length: 1.9 mm
    4. WDR: 120 dB
    5. Noise Reduction: 3D NR
    6. Video Compression: H.265
    7. Video Resolution: 50Hz:Main Stream (720P@25 fps), sub stream (1080P@25 fps)/60Hz:Main Stream (720P@30 fps), sub stream (1080P@30 fps)
    8. Video Frame Rate: 25 fps
    9. Video Bit Rate: 256 Kbps to 4 Mbps
    10. Light Compensation: Auto IR
    11. Day/Night: Auto (ICR)
    12. Audio Compression: G.711a; G.711u; PCM
    13. Audio Input: 1 channel
    14. Audio Output: Built-in speaker
    15. Audio Mode: 2-way voice communication
    16. Audio Enhancement: Echo suppression, digital noise reduction
    17. Audio Bit Rate: 16 KHz, 16 Bit
    18. Status Indicator Light: 3
  • Port
    1. RS-485 Port: 1
    2. Alarm Output: 1
    3. Power Output: 1-ch 12 VDC 100mA
    4. Exit Button: 1
    5. Door Status Detection: 1
    6. Lock Control: 1
    7. Network Port: One RJ45 10M, 100M network port
    8. Storage: Micro SD card (up to 64GB)
  • General
    1. Appearance color: Silver
    2. Power Supply: Dahua 2-wire switch (max. power supply distance 50 m)
    3. DC 48V 1A: Standard PoE
    4. Power Adapter: Optional
    5. Installation: Flush, surface mount
    6. Certifications: CE; FCC; UL
    7. Accessory: Flush/surface mount
    8. Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
    9. Protection: IK07; IP65
    10. Operating Temperature: –30°C to +60°C (–22°F to 140°F)
    11. Operating Humidity: 10%–90% (RH, non-condensing)
    12. Operating Altitude: 0 m–3000 m
    13. Power Consumption: ≤ 12W
    14. Net Weight: 0.35 kg (0.77 lb)
      Gross Weight: 0.4 kg (0.88 lb)
