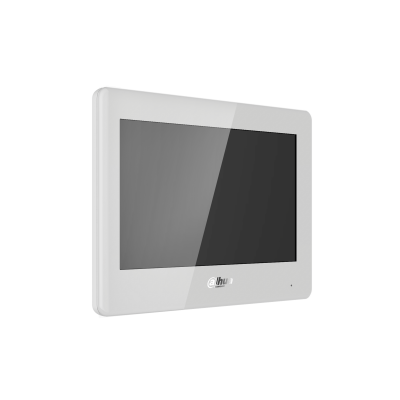

Dahua VTH5422HW Indoor Monitor

The Dahua VTH5422HW Indoor Monitor offers a 7″ TFT capacitive touch screen display with advanced features like 6-channel alarm input and 1-channel alarm output. Supporting standard PoE, H.265, and H.264 video coding, Dahua VTH5422HW Indoor Monitor facilitates seamless communication via 2-wire digital channels, with power over two-wire switch capability.

Dahua VTH5422HW Indoor Monitor intuitive interface includes a call management center accessible with a single tap, supporting daisy chain topology and boasting a sleek 2.5D screen glass design, making the Dahua VTH5422HW Indoor Monitor an efficient and stylish solution for indoor access and communication needs.

#DahuaVTH5422HW #IndoorMonitor #HomeSecurity #VideoIntercom #DahuaTechnology #SmartHomeTech #DAHUA

Dahua VTH5422HW Indoor Monitor

Model:  VTH5422HW



FEATURES

  • 7" TFT capacitive touch screen
  • 6-channel alarm input and 1-channel alarm output
  • Supports standard PoE
  • Supports H.265 and H.264 video coding
  • Supports 2-wire digital communication
  • Power over two-wire switch
  • Call management center with one tap
  • Supports daisy chain topology
  • 2.5D screen glass



SPECIFICATIONS

  • System
    1. Main Processor: Embedded processor
    2. Operating System: Embedded Linux operating system
    3. Interoperability: ONVIF
    4. Network Protocol: SIP; IPv4; RTSP; RTP; TCP; UDP
  • Basic
    1. Screen Type: Capacitive touch screen
    2. Display: 7" TFT
    3. Screen Resolution: 1024 × 600
    4. Audio Compression: G.711a; G.711Mu; G.711u; PCM
    5. Audio Input: 1
    6. Audio Output: Built-in speaker
    7. Audio Mode: Two-way audio
    8. Audio Enhancement: Echo suppression
    9. Audio Bit Rate: 16 KHz, 16Bit
  • Function
    1. Communication Mode: Full digital 2-wire
    2. Information Release: Receive and view text information released by the management center (After SD card is installed, picture information can be received and viewed.)
    3. Leave Videos: Yes (insert an SD card into the indoor monitor)
    4. DND Mode: DND period and DND mode can be set.
    5. Number of Extension: Villa: 3; apartment: 3
    6. Storage: Micro SD card (up to 64 GB)
  • Performance
    1. Casing: PC + ABS
  • Port
    1. RS-485: 1
    2. Alarm Input: 6
    3. Alarm Output: 1
    4. Power Output: 1 (12V/100mA)
    5. Door Bell: Yes (use any alarm input port)
    6. Network: One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)
  • General
    1. Color: Black or white
    2. Power Supply: Two-wire switch (max power transmission distance:100 m); Standard PoE
    3. Power Adapter: Not included
    4. Installation: Surface mount
    5. Certifications: CE; FCC; UL
    6. Accessory: Bracket and alarm ribbon cable (included)
    7. Dimensions: 189.0 mm × 130.0 mm × 26.9 mm(7.44" × 5.12" × 1.06")
    8. Operating Temperature: -10°C to +55°C (+14°F to 131°F)
    9. Operating Humidity: 20% to 93% (non-condensing)
    10. Operating Altitude: Beneath 3000 m (9842.52 ft)
    11. Power Consumption: Standby ≤ 2W; working ≤ 6W
    12. Net Weight: 388 g (0.86 lb)
    13. Gross Weight: 741 g (1.63 lb)
