DELI Laminating Machine ET105

DELI Laminating Machine

Model : ET105 (A3)

FEATURES :

• Heavy-Duty 4-Roller System: Utilizes four internal rollers to apply even pressure and heat, eliminating bubbles and wrinkles.

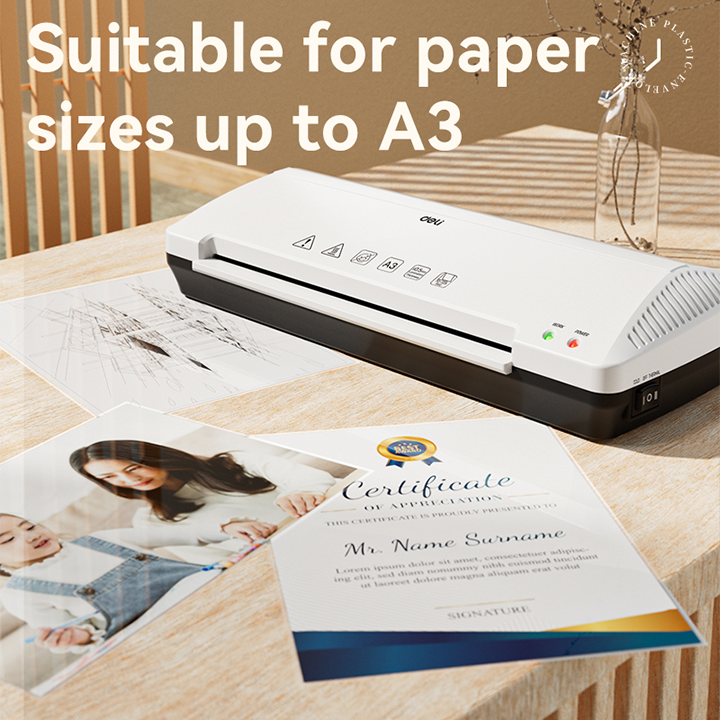

• A3 Wide Entry: Supports a maximum laminating width of 320mm, allowing for A3, A4, and smaller document sizes.
• Dual Mode (Hot & Cold): Switch easily between thermal lamination for standard pouches and cold lamination for heat-sensitive materials.
• Fast Preheating: Ready to use in just 3 minutes, significantly reducing waiting time during busy work hours.
• Anti-Jam Reverse Function: Includes a dedicated reverse button to safely back out pouches if they are inserted incorrectly.
• Precise Temperature Control: Features an adjustable temperature interface to match different pouch thicknesses (80–150 microns).

SPECIFICATIONS :

• Model : DELI ET105
• Max Laminating Width : 320 mm (A3 Size)
• Warm-up Time : 3 Minutes
• Laminating Speed : 300 mm / min
• Pouch Thickness : 80 – 150 Microns
• Max Document Thickness : 0.6 mm

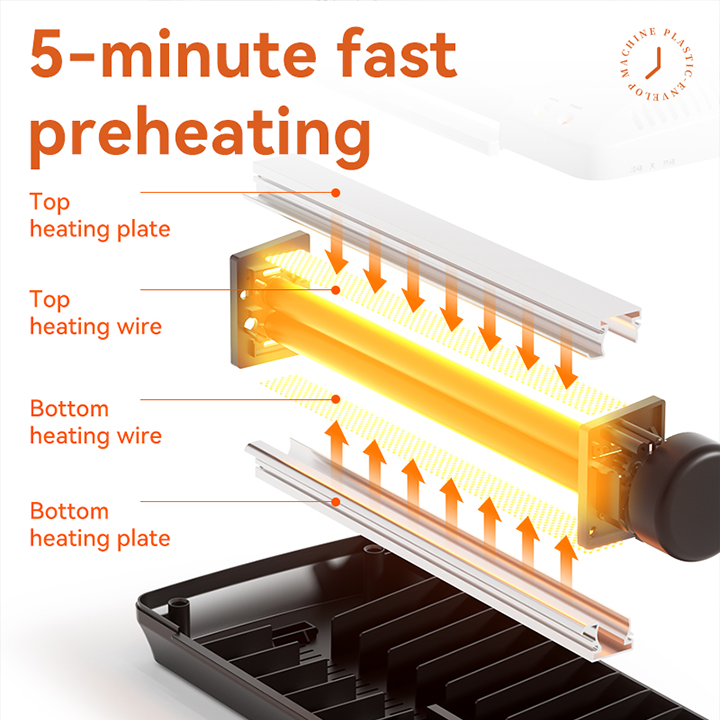

• Heating System : 4-Roller System (Internal)
• Operating Modes : Hot & Cold Lamination
• Voltage / Power : 220V – 240V / 410W
• Dimensions : 450 (L) × 175 (W) × 92 (H) mm
• Net Weight : 4.6 kg
• Safety Feature : Reverse Function / Overheat Protection

FAQ: Frequently Asked Questions

1. Can I laminate A3 posters with this machine? Yes. The ET105 has a 320mm entry width, which is specifically designed to handle A3 size documents, as well as A4, A5, and ID cards.

2. Why does it have 4 rollers instead of 2? Four rollers provide much better pressure distribution. The first two rollers heat and seal the pouch, while the last two rollers flatten and cool it, resulting in a flawless, professional finish without curves or bubbles.

3. What is the benefit of “Cold” lamination? Cold lamination is used for heat-sensitive documents (like certain photos, ink-jet prints, or thermal faxes) that might melt or discolor if exposed to high heat.

4. How do I clear a paper jam? If a pouch gets stuck, press and hold the Reverse button. The rollers will spin backward, allowing you to gently pull the document out from the front.

5. How thick of a pouch can I use? The ET105 is powerful enough to handle pouches from 80 microns up to 150 microns. For 150-micron pouches, ensure you select the higher temperature setting.

6. Does the machine get very hot on the outside? The ET105 is built with high-quality heat-resistant materials, but like all thermal laminators, the top surface will feel warm. Always ensure there is proper ventilation around the machine during use.

7. How do I know when it’s ready? The “Ready” indicator light will turn green once the internal rollers have reached the set temperature, typically within 3 minutes.
