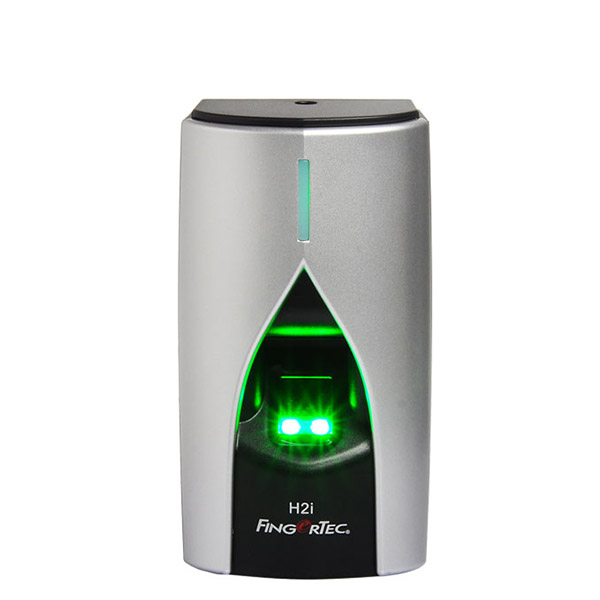

FingerTec Fingerprint Time Attendance & Door Access System
Model: H2i
SPECIFICATIONS
- Model : H2i
- Surface Finishing : Acrylonitrile butadiene styrene (ABS)
- Type Of Scanner : Non coated optical scanner
- Microprocessor : 300 MHz
- Memory : 256 MB flash memory & 32 MB SDRAM
- Algorithm : BioBridge VX 9.0 / VX 10.0
- Product Dimension (L X W X H) mm : 78 x 50 x 150
- Fingerprint templates : 1500
- Card : 10000
- Transaction : 100000
ENROLLMENT & VERIFICATION
- Methods : Fingerprint & Card
- Recommended fingerprint per user ID : 2
- Fingerprint placement : Any angle
- Verification time (sec) : < 1
- FAR (%) : < 0.0001
- FRR (%) : < 1
CARD TECHNOLOGY
- RFID: 64-bit, 125kHz, RF output power (EN300-330)
- MIFARE: MFIS50/S70, 13.56MHz
- HID: HID 1326, 26-bit, 125kHz
COMMUNICATIONS
- Method : TCP/IP, RS485, USB disk
- Baud rates : 9600, 19200, 38400, 57600, 115200
- Wiegand : 26-bit input / output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) : 20 ~ 80
- Power input : DC12V 3A
ACCESS CONTROL
- EM lock driving output : DC12V 3A / relay output
- Alarm output : NO
- Anti passback : Yes
VOICE LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified,
Vietnamese, Spanish, Portuguese (Portugal), French, Persian.
Other languages are available upon request.
