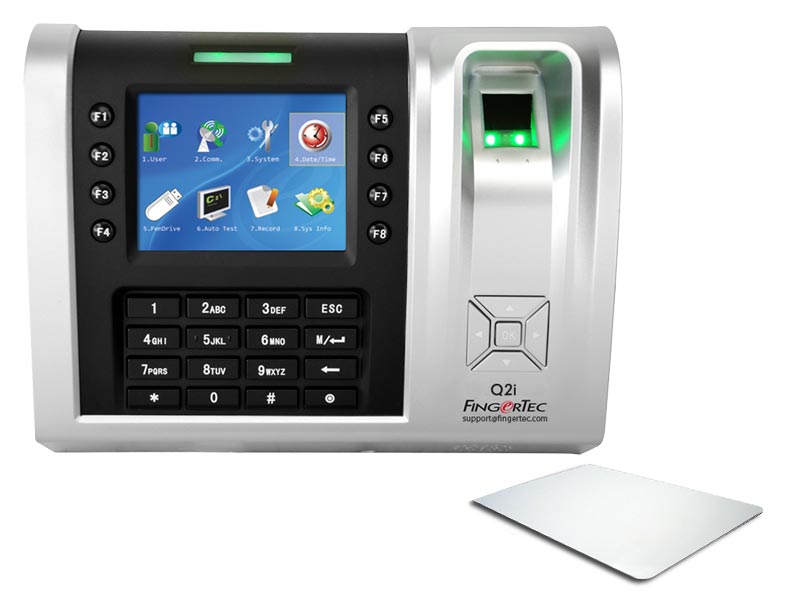

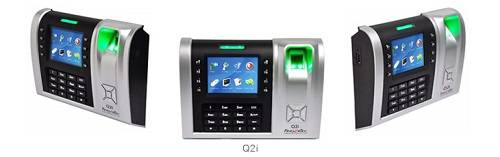

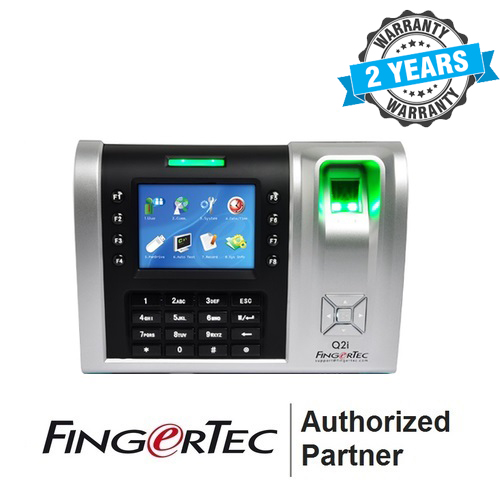

FingerTec Fingerprint Attendance Machine
Model: Q2i
Â
SPECIFICATIONS
- Model  : Q2i
- Surface Finishing  : Acrylonitrile butadiene styrene (ABS)
- Type Of Scanner  :  Non coated optical scanner
- Microprocessor : 800Â MHz
- Memory  :  256 MB flash memory & 64 MB SDRAM
- Algorithm  :  BioBridge VX 9.0 / VX 10.0
- Product Dimension (L X W X H) mm  : 200 x 56 x 160
- Fingerprint templates : 10000
- Cards  :  10000
- Transaction  : 200000
ENROLLMENT & VERIFICATION
- Methods  :  Fingerprint (1:1, 1:N), card & password
- Recommended fingerprint per user ID Â : Â 2
- Fingerprint placement  :  Any angle
- Verification time (sec) : < 1
- FAR (%) : < 0.0001
- FRR (%) : < 0.1
Â
CARD TECHNOLOGY
- RFID Â : Â 64-bit, 125kHz,
- MIFARE Â : Â MFIS50/S70, 13.56MHz
- HID: HID 1325, 26-bit, 125kHz
COMMUNICATIONS
- Method : TCP/IP, RS232, RS485,USB disk (Optional WiFi, GPRS & 3G)
- Baud rates  :  9600, 19200, 38400, 57600, 115200
- Wiegand  :  26-bit input/output
OPERATING ENVIRONMENT
- Temperature (°C) : 0 ~ 45
- Humidity (%) Â : 20 ~ 80
- Power input : DC12V 3A
TIME ATTENDANCE
- Siren  :  Built- in (Optional – External)
- Work codes  :  Yes
MULTIMEDIA
- Voice : Yes
- Display : 3.5” 65k color TFTÂ
- Photo ID Â : Â Yes
- Short messaging  :  Yes
ACCESS CONTROL
- EM lock driving output  :  DC12V 3A / relay output
- Alarm output  :  NO / NC
- Anti Passback  :  Yes
Â
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified,
Cantonese, Thai, Spanish, Portuguese Portugal / Brazil, French, Russian,
German, Italian, Turkish, Persian.
Other languages are available upon request.
